Oster 16-Speed Blender Power Cord Replacement

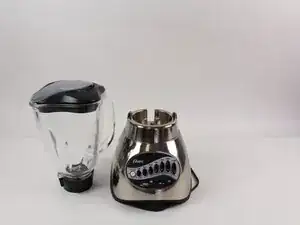

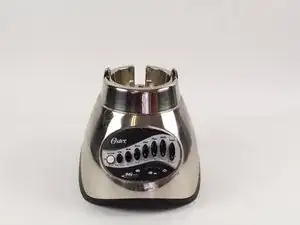

Remove the Blender Container from the Blender Base.

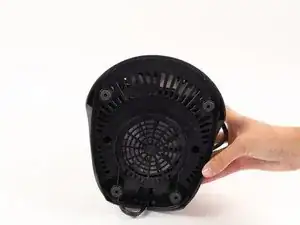

Flip the blender so the bottom is facing you.

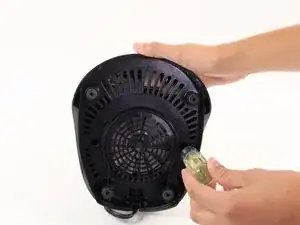

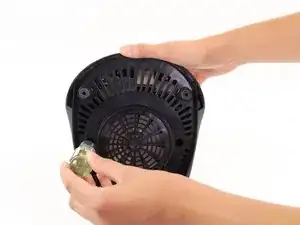

Unscrew the 16mm screws located on the plastic bottom from the blender base using a Phillips #2 screwdriver.

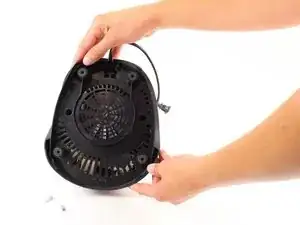

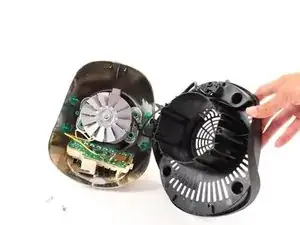

Remove the plastic bottom from the base of the blender.

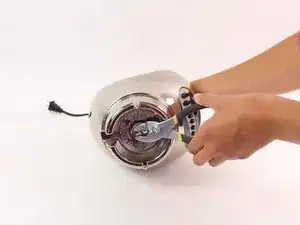

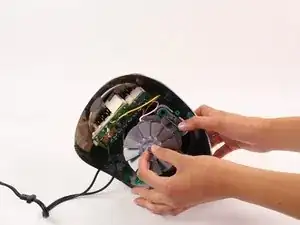

Holding the center of the fan, grip the knob in the center of the top of the blender with a wrench and twist the wrench counterclockwise.

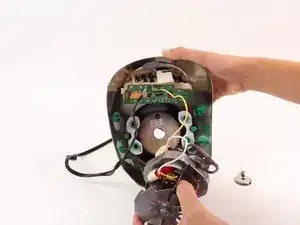

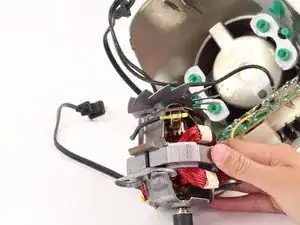

Carefully remove the motor and fan from the base of the blender.

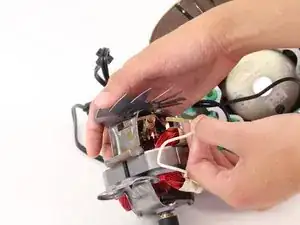

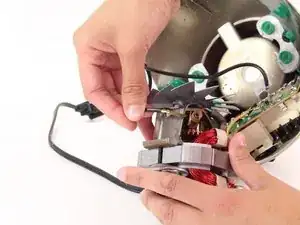

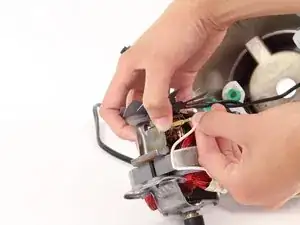

Now, gently pull the white wire that is connected to the base and the motor.

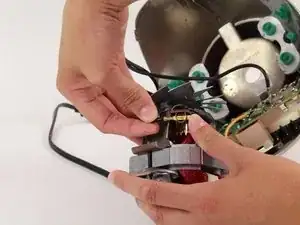

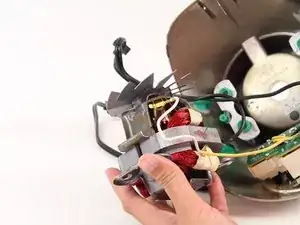

Now, turn the motor over, and remove the black wire from the motor.

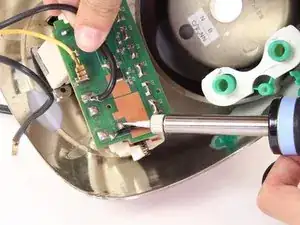

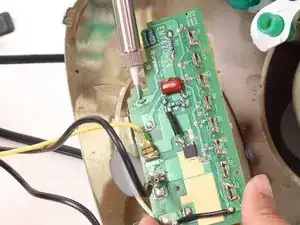

Now de-solder the yellow wire from circuit board. De-solder the wire following these instructions.

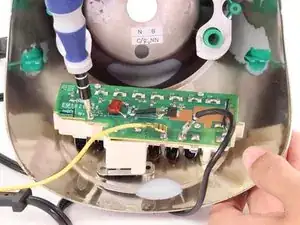

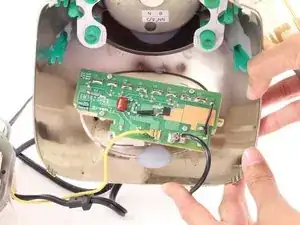

Locate the four 11mm screws in the circuit board.

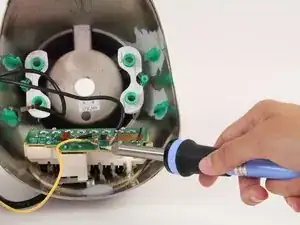

Unscrew the four screws using the Phillips #1 screwdriver.

Desolder the circuit board from the base at the indicated point, following the directions by clicking here.

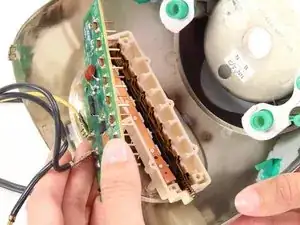

Now separate the circuit board from the base.

You will see that the circuit board is still attached by a red wire and a black wire.

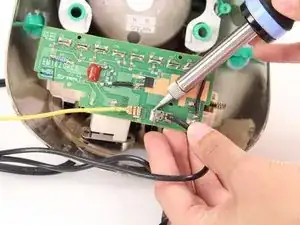

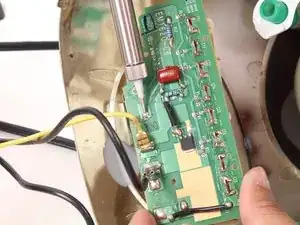

Flip the circuit board back over and desolder at the indicated points following the directions given here.

De-solder the black wire from the circuit board, and then carefully remove the black wire.

Now you can solder on the new power cord.
