Oster BLSTSS-PZO Gear Shaft Replacement

Written By: Tristian Cruz
  • Comments: 0
Oster BLSTSS-PZO Gear Shaft Replacement

Difficulty

Moderate

Steps

7

Time Required

25 - 30 minutes

Introduction

The gear shaft is responsible for spinning the blades.

  1. ZE1xoaP6vccOfjOT

    • Use the prying tools to open the four plastic screw holes on the bottom of the blender.

  2. eJkjXYteu3S2tHkN

    • Use the Phillips #1 Screwdriver to unscrew the four 16 mm screws and remove the plastic bottom.

  3. OnYKUHU1TpLFTkcr

    • Gently remove the circuit board.

  4. RBYBkGuNb1BXVi2H
    RBYBkGuNb1BXVi2H
    u4m3GXNZ4gQOZn4h

    • Use the spudger to detach the black wire from the circuit board.

    • Repeat for yellow wire.

  5. V1l4wRiVu2mnFqAY
    V1l4wRiVu2mnFqAY
    nUfyk1OWlXEgYyt3
    sVSCadm2upJGTkhF

    • Use the Phillips #1 to remove the four 8mm screws.

    • Use the medal spudger to detach the circuit board from the buttons.

    • Gently pull and release circuit board from buttons.

  6. kCBNVfrjiCki6tmE
    kCBNVfrjiCki6tmE
    Oaack4ZoJYNcRXTn
    Vu5gDNleGS2kO2aN

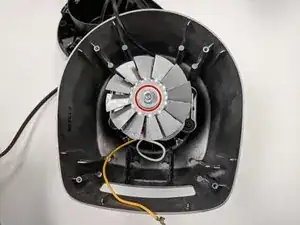

    • Remove the screw on top of the fan with the 4mm socket stock wrench.

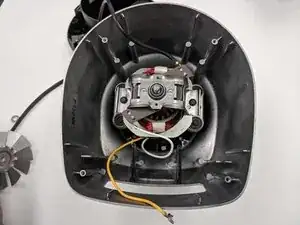

    • Remove the fan and washer.

  7. JNcbxgsofKOLkpYQ
    JNcbxgsofKOLkpYQ
    iQGK5TqTFHKkHEEK
    XqtRJCKASfRfGGZh

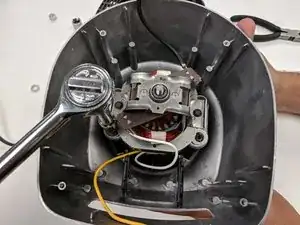

    • Remove the four screws with the 4mm socket stock wrench.

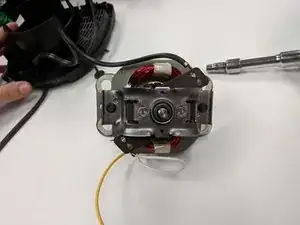

    • Remove gear shaft.

Conclusion

To reassemble your device, follow these instructions in reverse order.
