Introduction
Put this guide to work in order to replace your leaking seal in the blade assembly, Note the seal is located inside of the existing blade assembly.
Tools
-
-
Grip the blender base with one hand and blender bottle with the other hand.
-
Rotate the blender bottle a quarter turn counterclockwise .
-
Lift the blender bottle out of the blender base. The blade assembly should still be attached to the blender bottle.
-
-
-

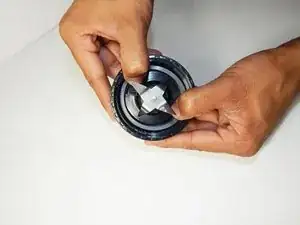

Grip the blade assembly with one hand and blender bottle with the other hand.
-
Rotate the blade assembly counterclockwise until it is completely unscrewed from the blender bottle.
-
Lift the blender bottle to separate it from the blade assembly.
-
-
-

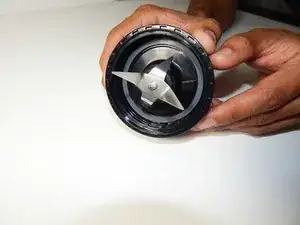

After removing the blade assembly from the blender bottle, ensure your blade assembly has its seal placed in the seal bed.
-
-
-

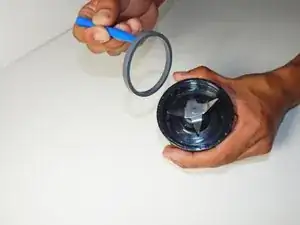

After separating the blade assembly from the blender bottle, position the plastic opening tool on either side of the seal in the blade assembly.
-

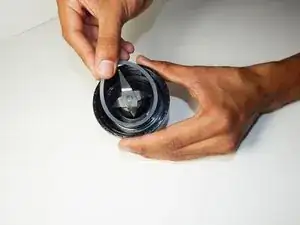

Wedge tool between seal and seal seat wall.
-
To reassemble your device, follow these instructions in reverse order.
