Otium Bluetooth Headphones Battery Replacement

Written By: Geralt
  • Comments: 0
Otium Bluetooth Headphones Battery Replacement

Difficulty

Moderate

Steps

5

Time Required

30 minutes - 1 hour

Introduction

The Otium Bluetooth Headphones are rated for 500 charge cycles. If your headphones will not hold charge, or charge at all, you may need to replace the battery.

    • Power off your earbuds first.

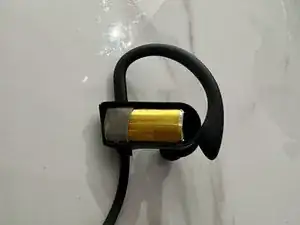

    • Use a pry tool to unclip the cover of the left earbud.

  2. oFplmcJMWsd2O4Bx
    oFplmcJMWsd2O4Bx
    1wtDXQJcHVZ2xc4m

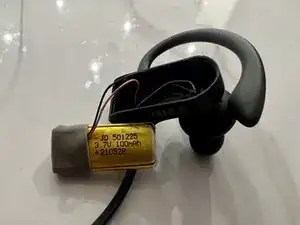

    • Carefully remove the battery from the housing.

    • The battery is connected by two fragile wires.

    • Shown is a 3.7v 100mAh Lithium Polymer (LiPo) battery.

  3. hWbsWW4wfSC4tsZL
    hWbsWW4wfSC4tsZL
    fJHDNaQenc3KshGS

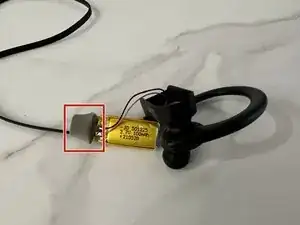

    • Carefully peel back the rubber cover from the protection circuit module (PCM).

    • Remove the cover and save to re-use.

    • The rubber is attached using Kapton tape and hot glue.

  4. EVDGi4FDoTxgpBVP
    EVDGi4FDoTxgpBVP
    bkqunJGDhUfEIlRs

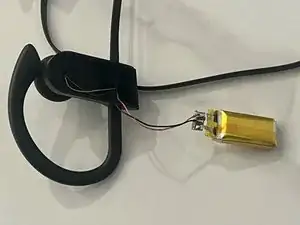

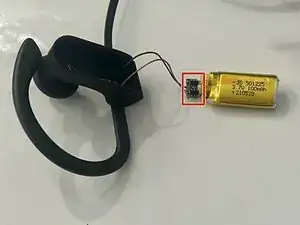

    • Carefully bend the PCM away from the battery to make desoldering the two wires easier.

    • Use a soldering iron to desolder the two wires from the PCM.

    • Adding a JST connector would make future repairs much easier!

    • Recycle your old battery!

Conclusion

To reassemble your device, follow these instructions in reverse order.
