PSP Go Analog Joystick Replacement

Written By: Miroslav Djuric
  • Comments: 1
PSP Go Analog Joystick Replacement

Difficulty

Moderate

Steps

6

Time Required

20 minutes

Introduction

Use this guide to put a fresh analog joystick into the PSP Go!

  1. LhA1YVTFVpuSaY5i
    LhA1YVTFVpuSaY5i
    iqxlosSvmM4KTYNl

    • Unscrew the four Phillips screws on the back of the PSP Go.

    • Rotate the PSP so you can see the top of the device.

    • Unscrew the two Phillips screws next to the volume buttons.

  2. nMEVBYIvPaGa4lSm
    nMEVBYIvPaGa4lSm
    g3JkOmU5wiX4ln1G

    • Use a plastic opening tool around the perimeter of the back cover to loosen it on all sides.

    • Open the back cover by gently lifting the right side, and rotating it to the left side (as if you were opening a book).

    • Be careful not to rotate the back cover from the bottom, as you will break the plastic screw holes on top of the device.

  3. ABedZDx5FKLfOJIa

    • Pull the top cover upwards gently from its housing.

  4. rAwimXtEyG2gOjBh
    rAwimXtEyG2gOjBh
    GhWZ2JCkjVofsNyD

    • Remove the two Phillips screws holding the bottom plate.

    • Gently lift the bottom plate away from the device.

  5. tomx2WLI1NH15KVM

    • Use a #00 Phillips screwdriver to remove both screws holding the analog joystick in place.

  6. O3l2oXCcRWiQFYJx
    O3l2oXCcRWiQFYJx
    oDWNuGJvNOyTJYgI

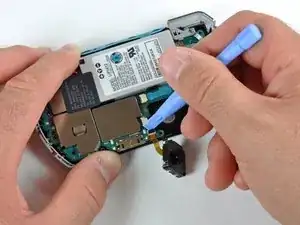

    • Use a plastic opening tool to gently flip up the analog joystick's cable connector.

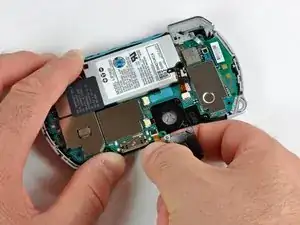

    • Use your fingers or tweezers to gently pull out the analog joystick cable from its connector.

Conclusion

To reassemble your device, follow these instructions in reverse order.
