Pacific Image Electronics CS3600 Button Spring Replacement

Written By: Amber Berry
  • Comments: 0
Pacific Image Electronics CS3600 Button Spring Replacement

Difficulty

Moderate

Steps

5

Time Required

5 - 15 minutes

Introduction

Before beginning, please know that you will be completely taking apart the device in order to get to the button from the inside.

  1. srllpC4qJ2uO626r

    • Begin opening the device by unscrewing the 5 following 9mm x 7mm screws with a J1 screwdriver.

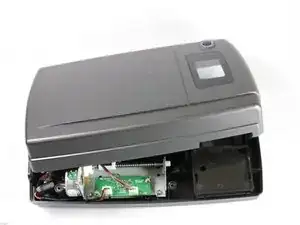

  2. CULSvbsFUrWHGVKI

    • Once the screws have been removed, with light force open the scanner by pulling it apart at the seam.

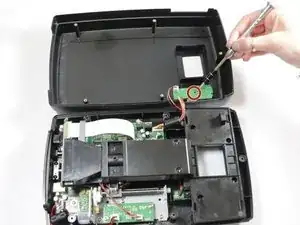

  3. wbbTQDvwFmwuULlS

    • With a JIS J0 screwdriver remove the 1 screw that is 7mm x 6mm.

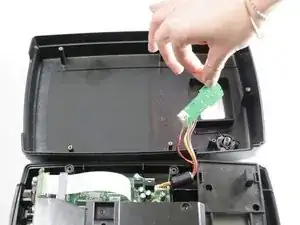

  4. OAWPOysJ1KSlmwDY

    • Lift and move the plate with the connected wires out of the way.

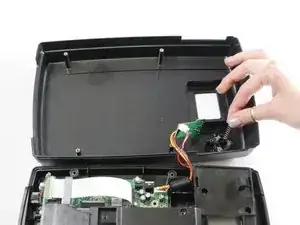

  5. We1sFlPFCtxlrQTb

    • Remove the spring and replace it with a new one.

Conclusion

To reassemble your device, follow these instructions in reverse order.
