Pantech Matrix Camera Button Replacement

Written By: Zeel Patel
  • Comments: 0
Pantech Matrix Camera Button Replacement

Difficulty

Moderate

Steps

10

Time Required

10 - 15 minutes

Introduction

The camera button of Pantech Matrix C740 functions as the mechanism by which the camera is activated; however, faulty functioning of the camera button may cause the device to not allow picture-taking. Therefore, this guide serves as an aid in the replacement of the camera button for the Pantech Matrix C740.

  1. M2UAxAuU2eZq4efC

    • Place phone with screen side facing toward you.

  2. CoDANMFIovVnEpEs

    • Flip phone over so screen side is now facing down.

  3. 3aNJbtQpaRqjsZGD
    3aNJbtQpaRqjsZGD
    HuGAJDgDYHwQWYry

    • Gently slide the backside phone cover off exposing the battery underneath.

  4. lUXoBUdlyyIQ6rGp

    • Carefully lift the battery up from where the spudger is pointed.

  5. rEJ2lb2yjd6BXmLB

    • Remove the battery from its dock.

  6. nlRMLDaW3cMyQy6e
    nlRMLDaW3cMyQy6e
    MYEIJKAXo6MrRrcK
    semeoMKVnKYFokxT

    • Slide the SIM Card out of its dock.

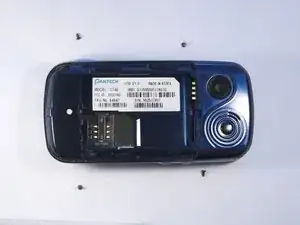

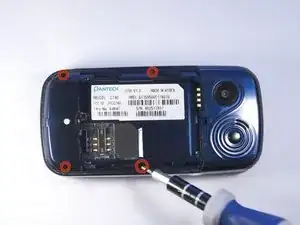

  7. IIUVJPaONdsuaSaV
    IIUVJPaONdsuaSaV
    Q5rGZ5Oas6HRrSxG

    • Use a Phillips screwdriver to remove the four 2mm Phillips #000 screws from each corner of the device.

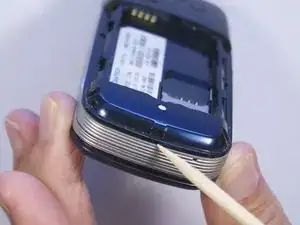

  8. A13p3XIe2fOoJGMI
    A13p3XIe2fOoJGMI
    JqI1M2OIeYOeoT5a

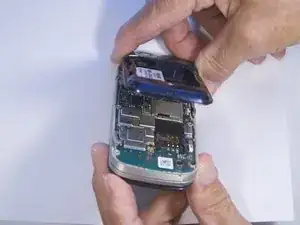

    • Rotate the phone so the base is facing you.

    • Use spudger to separate phone casing and inside as shown.

    • Remove the casing carefully and set aside.

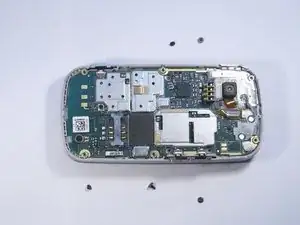

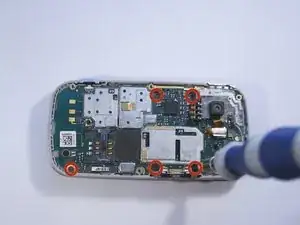

  9. CJKUkjkbGdhJxCsU
    CJKUkjkbGdhJxCsU
    oRJ3dnDO4AIrcVR5

    • Place phone with exposed motherboard facing you.

    • Use a Phillips screwdriver to remove the five 2mm Phillips #000 screws holding the camera in place.

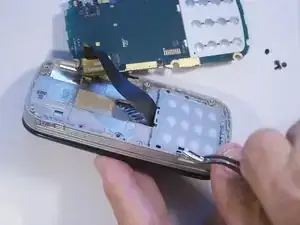

  10. WrkvVWO2BPZ6LcOg
    WrkvVWO2BPZ6LcOg
    o1Z52mJhP1Xqc3cU

    • Carefully remove the motherboard to expose the camera button.

    • Grasp the camera button with a polypus and pull gently to remove the camera button.

Conclusion

To reassemble your device, follow these instructions in reverse order.
