Parrot AR.Drone 2.0 Motor Replacement

Written By: David Hoyt
  • Comments: 4
Parrot AR.Drone 2.0 Motor Replacement

Difficulty

Easy

Steps

8

Time Required

15 - 20 minutes

Introduction

Use this guide to diagnose and replace a faulty motor on your Parrot AR.Drone 2.0.

AR.Drone 2.0 spare parts and mounting tools are available from several Parrot retailers.

  1. CpekEyyHppMWqkGP
    CpekEyyHppMWqkGP
    kNj3n1vZBjLhHaPu

    • Remove the foam body.

  2. sTm3CrHkPlBU6Uju
    sTm3CrHkPlBU6Uju
    NDNYA33DeljHNWaK

    • Disconnect the battery by pulling the two red wires apart.

    • Remove the battery by releasing the battery retaining straps.

    how do i put the clips back in?

    kuki vier -

    Are you referring to the clips in step three? If so, i highly recommend a hard, flat edged tool like a plastic spudger or flat head screw driver. Push is against the opposite side of the C clip that is opened with roughly the same force you applied to get it off. You have to be really careful that you push it directly horizontal or else you might damage the shaft or risk loosing the clip if it pops off.

    David Hoyt -

  3. ueQhsxBBM5cSEKR1

    • Remove the small retaining clip using a plastic opening tool.

    • Be careful as these clips can fly off and can be difficult to find.

  4. rPojlcS3TMUlkZ5G
    rPojlcS3TMUlkZ5G
    NAuY1WBRRQhQlwI2
    BDg1mqoY2WEdqN3m

    • The propeller, gear, and rod can be removed by simply lifting them off the motor.

  5. oToJnbBFCbM31kKD
    oToJnbBFCbM31kKD
    tsj45ycCrfqmHBkM

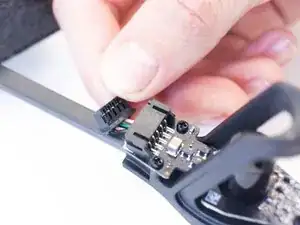

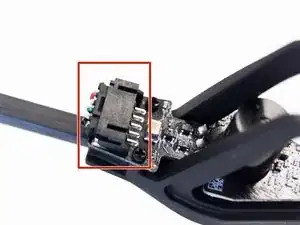

    • Disconnect the connector at the bottom of the motor assembly.

  6. HVBeEA25DKrTxpLG

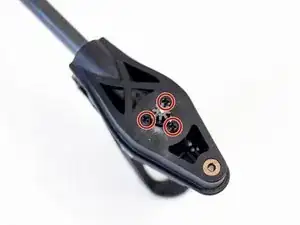

    • Remove the three 5mm screws on the top of the motor assembly with a PH00 bit.

  7. nYsDgSbS6AunEgmZ

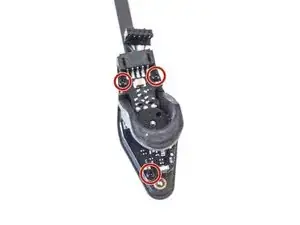

    • Remove the three 5mm screws on the bottom again using a PH00 bit.

    • The three screws from the top are different from the three screws on the bottom.

  8. QGuO5xLJLtemeDsc
    QGuO5xLJLtemeDsc
    TxuNMrOEEoCgr5dK

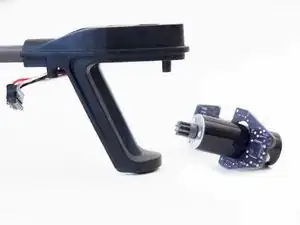

    • Carefully wiggle out the motor assembly out of the arm.

Conclusion

To reassemble your device, follow these instructions in reverse order.
