Introduction
I go step by step through how to replace an input jack on the Peavy XM4 Amp/Mixer
Tools
Parts
-

                  -

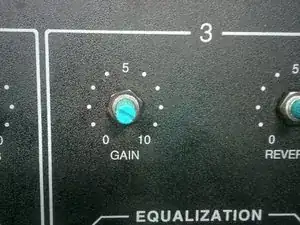

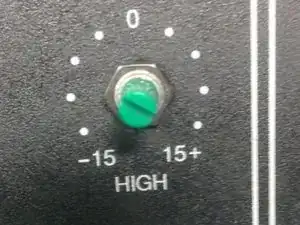

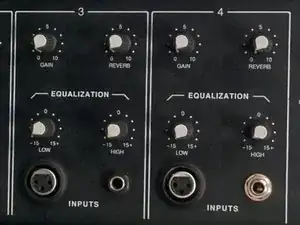

            All of the dials have a rubber cover and a nut, these need to be removed from all of the dials. The Jack inputs also have a nut holding them in place, remove these also.

-

-

                  -

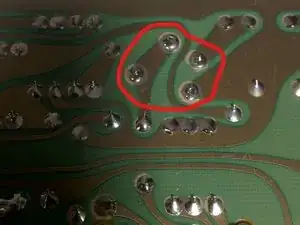

            Remove the input jack by desoldering the pins on the other side of the board, you may want to use a solder remover tool to make it easier.

-

-

                  -

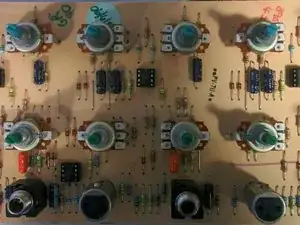

            Solder the new jack in place, the jack i used had an extra pin but was not needed. i ended up bending it out of the way and it all still works.

-

-

                  -
            Once the jack or jacks have been replaced simply re-assemble by working backwards, remember that the dials each have a screw and a topper. when putting the toppers back on make sure the dials are turned to the minimum value and line them up to avoid confusion when being used.

-

To reassemble your device, follow these instructions in reverse order.
