Petnet SmartFeeder SF10E Motherboard Replacement

Written By: Travis Lamb
  • Comments: 0
Petnet SmartFeeder SF10E Motherboard Replacement

Difficulty

Moderate

Steps

8

Time Required

10 - 15 minutes

Introduction

The motherboard is fairly simple to remove. No special tools are needed besides a screwdriver to open up the SmartBowl. Be careful when handling the motherboard because the components on it are very delicate.

  1. ZZyUJhfVIRHwYqGb
    ZZyUJhfVIRHwYqGb
    ITGAjlR5uv2nCVM1
    NBb3b3iOECyRAmEf

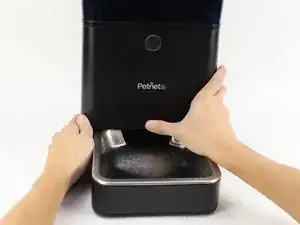

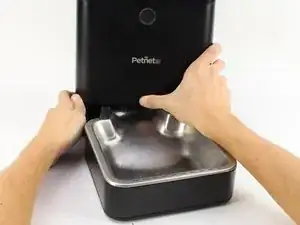

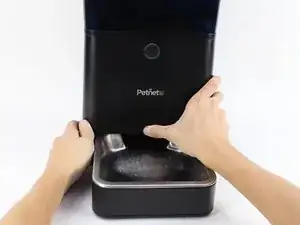

    • Eject the SmartBowl by pressing the button located at the front of the SmartFeeder base.

    • Remove the metal tray by using both hands and pulling out the bowl towards you.

  2. R4r2s3yBSrkF2nf6
    R4r2s3yBSrkF2nf6
    CAgXQ1AyIsln5Ynr

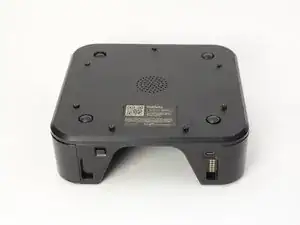

    • Turn the bowl tray side down by using both hands.

    • Remove seven 11 mm screws by using the Phillips #1 screwdriver.

  3. 21UkrQu1BIq6rups
    21UkrQu1BIq6rups
    U1CxL6YuDGfcRBhN

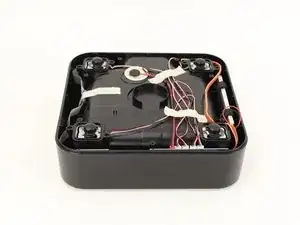

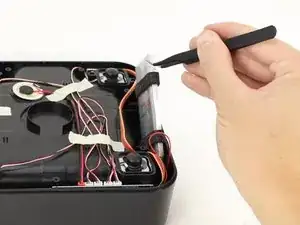

    • Take the battery out of the SmartBowl with tweezers, avoid pulling on any wires.

    • Hold the SmartBowl down using one hand while using the other hand to remove the battery.

  4. XGGyOdZMgXHg2xWh
    XGGyOdZMgXHg2xWh
    GA3RHYZBxs35aEEm

    • Remove the tape, closest to the four white connectors, with your hands.

    • Keep the wires attached to the tape for easy reassembly.

  5. DlK4MBPsjEIolPMo
    DlK4MBPsjEIolPMo
    H1hTDu11X4KfcOZQ

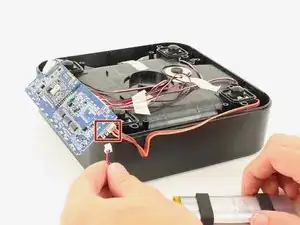

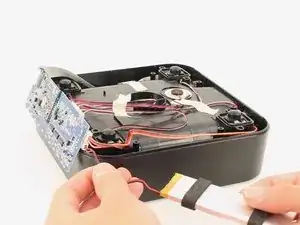

    • Trace the wires with your hands from the battery to the motherboard.

    • Detach the three-prong connector between the battery and the motherboard by pulling the white connectors with your hands.

    • Hold on to the sockets on the motherboard or you could accidentally pull off the entire assembly.

  6. heEI2PhfVTPvnehh

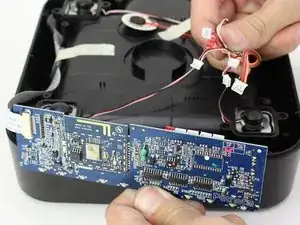

    • Remove the remaining 3-prong connectors by carefully pulling outwards.

    • Hold on to the sockets on the motherboard or you could accidentally pull off the entire assembly.

  7. mQ2DFZS1nFWStwm5
    mQ2DFZS1nFWStwm5
    DIVoWXHdPokWVZ5o

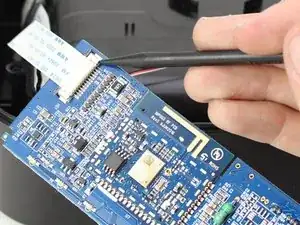

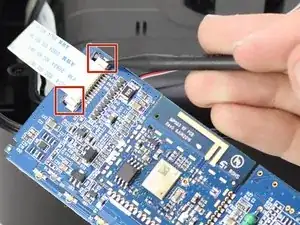

    • Push both small gray pieces next to the ribbon connector towards the ribbon to put them in the “open” position using the nylon spudger.

  8. qoHw1uKHnEO6XhjH
    qoHw1uKHnEO6XhjH
    eAHDHcLJrQS1YeMQ

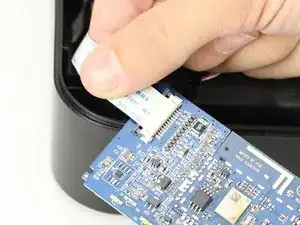

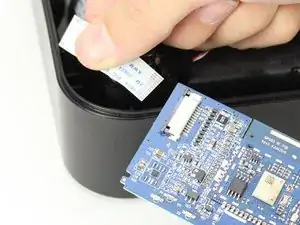

    • Remove the ribbon connector from its slot by pulling on it with a couple fingers.

    • The ribbon should come out easily with the gray pieces in the "open" position. Do not use too much force with the ribbon or it could be damaged.

    • Make sure the gray pieces are in the “open” position when you reassemble the ribbon connector or the connector will not go into its slot. Once the connector is in the slot, slide the gray tabs back down into the “closed” position

Conclusion

To reassemble your device, follow these instructions in reverse order.
