Introduction
If you are looking to replace the speaker in your Pioneer A1 XW-SMA1-K then this is a guide instructing you how to.
-
-

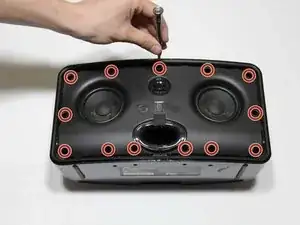

Use a Phillips #1 screwdriver to remove the thirteen 12 mm screws in the speaker frame.
-
Remove the four screws at the bottom of the device
-

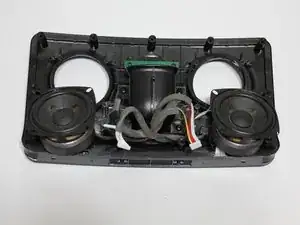

Remove the speaker frame by pulling vertically and flip to reveal the speakers.
-
-
-

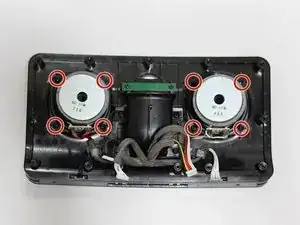

Use a Phillips #1 screwdriver to remove the eight 12 mm screws from the left and right speakers.
-
-
-

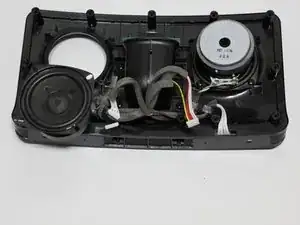

Remove the left and right speakers from the speaker frame by pulling gently up and detaching the wires.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
