PlayStation 3 Hard Drive Replacement

Written By: Walter Galan
  • Comments: 0
PlayStation 3 Hard Drive Replacement

Difficulty

Moderate

Steps

3

Time Required

No estimate

Introduction

  1. 5j6yNAHNxtZJIIvj
    5j6yNAHNxtZJIIvj
    r1UCUFT4Ig3maTxS

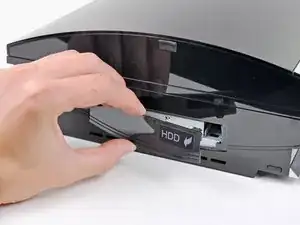

    • Use the flat end of a spudger to pry the hard drive door away from the lower case.

    • Remove the hard drive door from the PS3.

  2. QYn3N6VDTfiHxZ1I

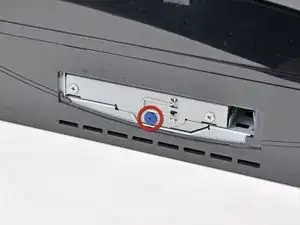

    • Remove the blue 8 mm Phillips screw securing the hard drive cage to the chassis.

  3. i3hfMO4AkixJxXGe
    i3hfMO4AkixJxXGe
    ypEbcKC3tTmEIrXB
    hSv4G4FrhiJUGOJN

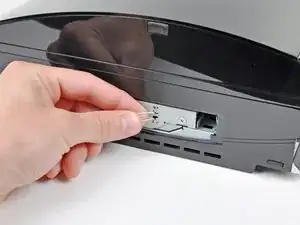

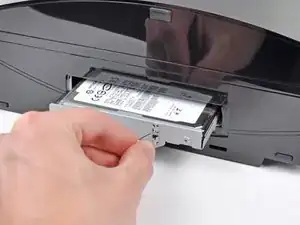

    • Grab the hard drive pull tab and pull the hard drive toward the front face of the PS3.

    • Pull the hard drive assembly out of the PS3.

Conclusion

To reassemble your device, follow these instructions in reverse order.
