PlayStation Classic Controller Port Replacement

Written By: Maxwell Webb
  • Comments: 3
PlayStation Classic Controller Port Replacement

Difficulty

Easy

Steps

7

Time Required

15 minutes

Introduction

This guide demonstrates how to replace the USB controller ports on the front of the PlayStation Classic video game console.

  1. fMXgckYPW1Xa4pB3

    • Flip the console so its back is facing up.

  2. UoKRAM2Oc2Sghrql

    • Remove the five 3mm screws using the Phillips #00 screwdriver.

    • Make sure to keep your screws together in a secure location to avoid misplacement.

  3. Z6P2MjH1L3H6pxJS
    Z6P2MjH1L3H6pxJS
    3MSJbBLh3UKv6SJm
    MMBXgBKdgAoKBxNy

    • Remove the back plate from the rest of the console using your hands or the Jimmy tool.

  4. dEnf2ksem4lYZDg2

    • Unscrew the motherboard's five 3mm screws with the Phillips #00 screwdriver.

    • Be careful not to apply too much force. The motherboard is flimsy and easy to break.

    • Keep track of your screws once they are removed.

    On this step there is actually only 4 screws. looking at this picture the top middle circled hole is for the screw for the bottom cover.

    ty vw -

  5. NnWJhN5EQeWjKNMl
    NnWJhN5EQeWjKNMl
    NQ2evRTVFPbhsXOQ
    KN4KgHJ2eetLjDTP

    • Carefully remove the motherboard from the the rest of the console using your hands or the Jimmy tool.

  6. nbyCgitMygRci3IT
    nbyCgitMygRci3IT
    DtIS3yhyjDTB5Ynj
    emRYo5ORndGmrFSh

    • The motherboard is connected to its metal protective casing with sticky pads. No tools are required to remove it.

    • Pull the metal casing off the motherboard.

    • Remember to be gentle when handling the motherboard.

    Alguien sabe repara puertos USB no me reconoce nada ni los controles

    Juan Abraham Avila Yampey -

    Qualcuno sa come riparare le porte USB, non riconosce nulla o i controlli

    LORENZO MANCUSI -

  7. yBnRjqEyCQueTrtb
    yBnRjqEyCQueTrtb
    lMWTctHr1lMkDgnO

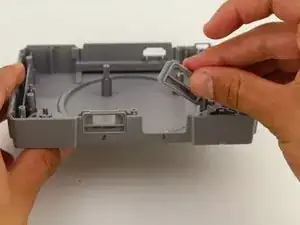

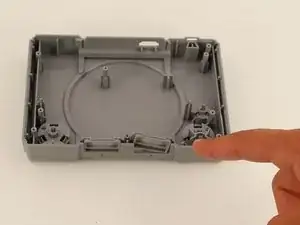

    • Identify the damaged or faulty controller port and simply use your fingers to remove.

Conclusion

To reassemble your device, follow these instructions in reverse order.
