Introduction
If you have already tried a different power cord it is possible your internal power adapter is broken. Follow these steps to replace this part of your soundbar.
Tools
-
-
To begin, remove the 8 screws locating on the back of the soundbar. These can be removed with the ifixit screwdriver equipped with a Phillips' head in size J1.
-
The cover will lift up, but there will be wires underneath connected to the cover that need to be unscrewed. This will be shown in the next step.
-
The 8 screws on the back cover, as well as the screws removed in the following steps, are all the exact same length (approx. 1 centimeter). Keep track of all screws but do not worry if they become mixed up.
-
-
-

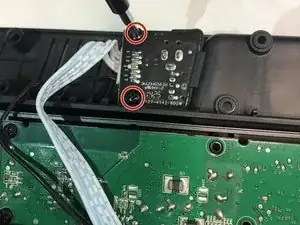

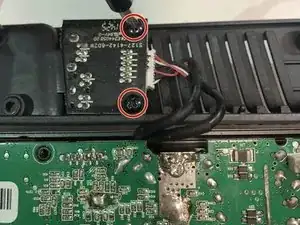

Underneath the back cover, there will be two flat panels, each with two 1cm screws.
-

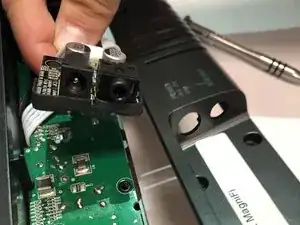

Remove the two screws using the Phillips #1 screwdriver. Once they are unscrewed, the panels will hang loose allowing unobstructed access to the motherboard.
-
-
-
To detach the cables grab the internal power adapter in one hand and with the other grab the base of the wires and firmly pull them straight out from the device.
-
To reassemble your device, follow these instructions in reverse order.
