Power Macintosh G3 Blue and White Modem Replacement

Written By: [deleted]
  • Comments: 0
Power Macintosh G3 Blue and White Modem Replacement

Difficulty

Easy

Steps

5

Time Required

9 - 15 minutes

Introduction

I wasn’t able to find a replacement modem assembly online so you are on your own for that part.

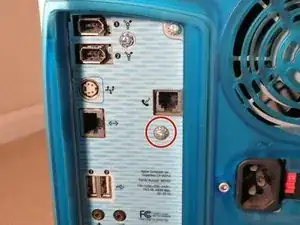

  1. qR2fKQIFfMpI6ECx

    • Remove the Phillips #1 screw circled in the picture. Set it aside for re-assembly.

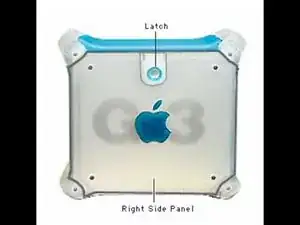

  2. vCDsGYusy4hOgTQy

    • Unfortunately, I am unable to provide OG content for this step due to my Power Mac’s outer case being severely damaged. Once I get my new outer case I will update this step.

    • Lift the latch on the right side panel to reveal the internals.

    • If you are doing this on a hard surface I highly suggest you put a mat down between the door and the ground to prevent scratches.

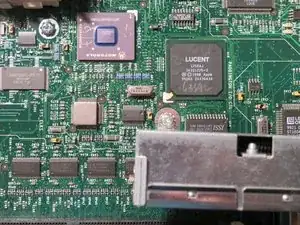

  3. 5hQQpOHwidyDI1oV

    • Remove the single Phillips #1 screw circled in the picture.

    • I apologize for the lack of picture quality. The only camera and lighting I had were my iPhone X´s camera and a table lamp. Lol!

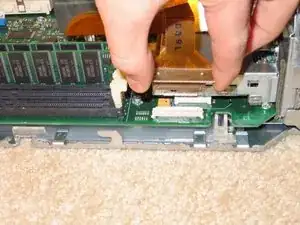

  4. 1f1JyPRaSZpQTTh1

    • Disconnect the modem’s flex cable from the connector on the logic board.

    • Lift the modem assembly out of it´s place on the logic board.

Conclusion

To reassemble your device, follow these instructions in reverse order.
