PowerA Spectra Infinity Enhanced D-pad Replacement

Written By: Kevyn Jorge
  • Comments: 0
PowerA Spectra Infinity Enhanced D-pad Replacement

Difficulty

Moderate

Steps

6

Time Required

10 - 15 minutes

Introduction

If your PowerA Spectra Infinity Enhanced (model number 1522360-01) D-pad is unresponsive, use this guide to replace the D-pad.

You may also want to replace your D-pad with a different customized D-pad in which case you can also use this guide to do! Please ensure that the controller is not plugged in while disassembling it.

  1. DBxFkkqT1pmpRNOU
    DBxFkkqT1pmpRNOU
    vKVrCVMKyOZQ2fdu

    • Flip the controller so the back is facing up.

  2. Aox3ap5jbSIeFuJJ

    • Remove the eight 10 mm screws from the back of the controller using a Phillips #0 screwdriver.

  3. 6uwELqf5qBsOUb6g
    6uwELqf5qBsOUb6g
    oQtoZTCrGGCB21lM

    • Unlock the trigger locks before removing the backplate.

    • This will make taking the plate off easier.

    • Use your fingers and carefully remove the backplate.

  4. TUNupIxDZl52GOve

    • Remove the two 10 mm screws connecting the motherboard to the faceplate using a Phillips #0 screwdriver.

  5. h5OQtlwL3W1ayhpX
    h5OQtlwL3W1ayhpX
    GHyW16BfaUcrmysb

    • Use your hand to separate the motherboard from the face plate.

  6. TP4AUwmGfHuct3yy
    TP4AUwmGfHuct3yy
    ZKSpUlwLNMMMehPF

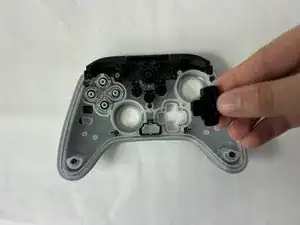

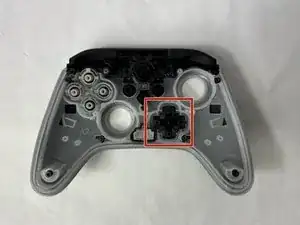

    • Remove the D-pad.

    • The buttons will fall out easily if you flip the faceplate over. You can raise the faceplate off the surface and push the D-Pad out from underneath.

Conclusion

To reassemble your device, follow these instructions in reverse order.
