Presto PopLite 04820 Power Cord Replacement

Written By: Emanuele Rocco
  • Comments: 0
Presto PopLite 04820 Power Cord Replacement

Difficulty

Difficult

Steps

4

Time Required

10 - 20 minutes

Introduction

Shows how to replace the entire power cord. This may need to be done if the device shut off mid-use. Be sure that the PopLite is unplugged from the wall and has had time after use to cool down before working on the device.

  1. U5isUMeeIyRu4hmj

    • Be sure that the popper is unplugged before disassembly.

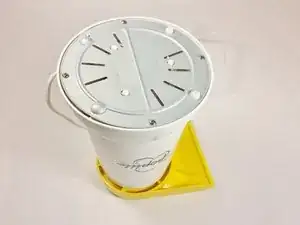

    • Turn Presto Popper upside down.

  2. 5QMs3lHjstFAuFXY
    5QMs3lHjstFAuFXY
    mNTHxyMSoOI3XWE4
    O2x5Qpls5NZlkRMO

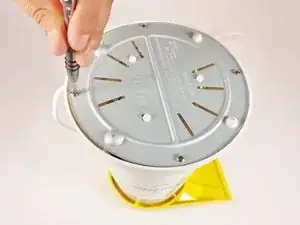

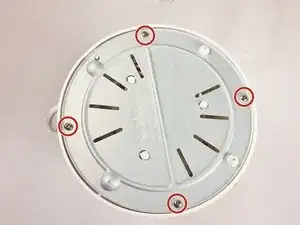

    • Remove the four 9 mm Phillips #2 screws from the base.

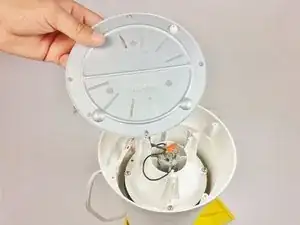

    • Once all four screws are removed, take the base off.

  3. 4OFxsT3HcixasX4u
    4OFxsT3HcixasX4u
    wkViujwodWT3pL5w
    xfjGPWySKBIAJieo

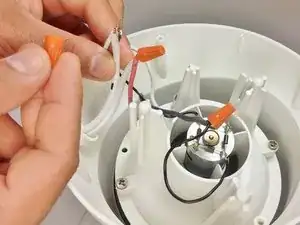

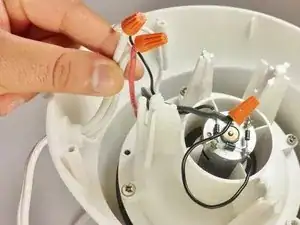

    • Untwist the two orange twist-on wire connectors.

    • Make a note of which wires are in each of the orange caps.

  4. vChwaiAvqA3GuK3O
    vChwaiAvqA3GuK3O
    U2myuqAYLySIucjL
    dTfUiQPBdmgHy116

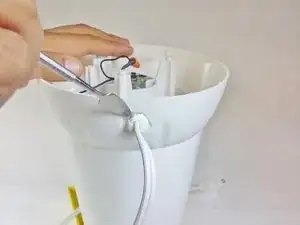

    • Locate the plastic piece holding the power cord in place.

    • Take the metal spudger from the tool kit and pry this piece loose.

    • This plastic piece may take excessive force to pry out, just keep trying until it pops out.

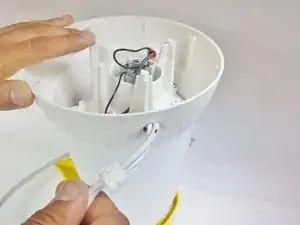

    • Remove the power cord.

Conclusion

To reassemble your device, follow these instructions in reverse order.
