Introduction
The Terracopter EVO controller motherboard is used to control all of the functions of the controller and relay them to the drone.
Tools
-

                  -

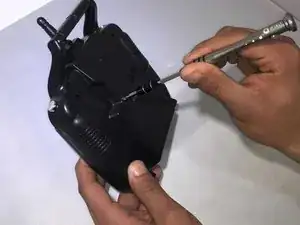

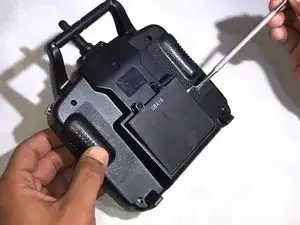

            Using a Phillips #0 screwdriver, remove the screw connecting the battery cover to the controller.
-

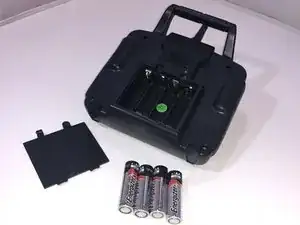

            Remove the battery cover from the controller.

-

-

                  -
            Orientate the controller to where the battery compartment is facing upwards.
-

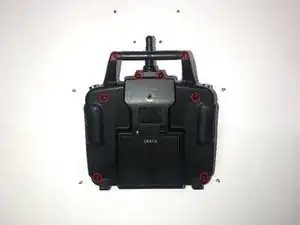

            Remove the four 5mm and four 4mm Phillips #1 screws from the case.

-

-

                  -

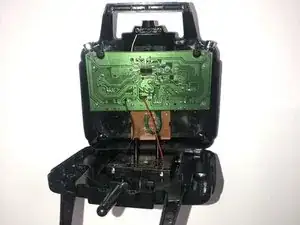

            Since the battery wires are still attached, carefully move the rear panel down to expose the motherboard.

-

-

                  -

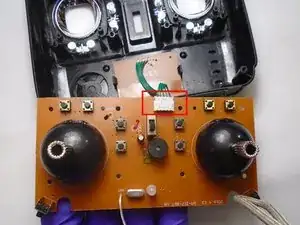

            Locate the set of four green wires and one black wire attached to the motherboard.
-
            Remove the male, white connector by pressing up on the two tabs on the female connector. Then, pull the connector away from the female connector on the motherboard

-

-

                  -

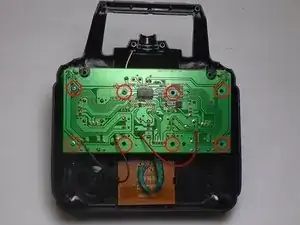

            Locate the single pin holding the negative and positive wires to the motherboard. Each lead should have one pin holding each wire to the green side of the motherboard.
-

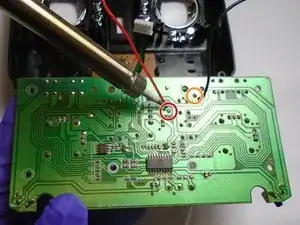

            Using a soldering iron, melt the existing solder point for the red lead (positive line).
-
            Using a soldering iron, melt the existing solder point for the black lead (negative line).
-
            Pull the red and black leads through their respective holes, out of the motherboard.

-

To reassemble your device, follow these instructions in reverse order.
