RCA 8 Apollo Screen Replacement

Written By: McKenna Shipper
  • Comments: 0
RCA 8 Apollo Screen Replacement

Difficulty

Moderate

Steps

7

Time Required

No estimate

Introduction

Use this guide to replace a cracked or malfunctioning screen on your RCA Apollo 8 tablet (identified with model number RCT6573W23).

  1. GUBQMbeSBUZN4U2A

    • Before you begin, discharge your tablet battery below 25%. A charged lithium-ion battery can catch fire and/or explode if accidentally punctured.

    • Power off your tablet before beginning to disassemble.

  2. pPxyYSIdrRqYsxYy
    pPxyYSIdrRqYsxYy
    sByWnyxSEAdsctNl

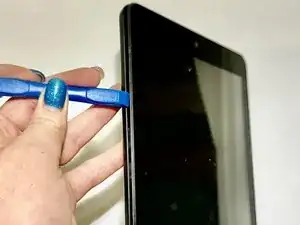

    • Insert an iFixit opening tool into the gap between the tablet and back panel.

    • Using a combination of iFixit opening tools and iFixit opening picks, pry the tablet upward around its perimeter to release it from the plastic rear case.

    • If inserted too far, an opening pick can damage your device. It is helpful to mark the edge with an opening pick, or opening tool at a depth that will not damage the inner contents of the tablet.

  3. rPVOxBZl6WPjPgBJ
    rPVOxBZl6WPjPgBJ
    PYQUHGrZmVR1UlKI

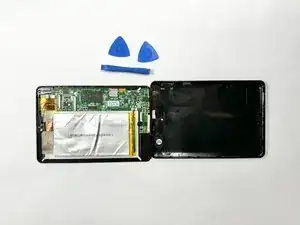

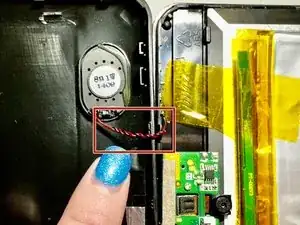

    • Disconnect the red and black speaker wires from the tablet.

    • The front and back of the tablet will be disconnected.

  4. WfxIoV6ikSoVguTk
    WfxIoV6ikSoVguTk
    ejMglAAsfg5VqQLl
    BQfgQYBg52lfvuAj

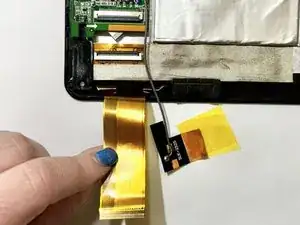

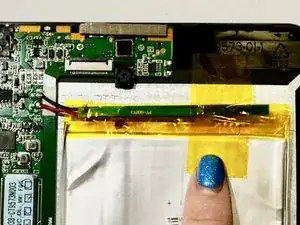

    • Release the gold and black tab from the battery that's attached to a gray wire. The gold tab is held down by an adhesive; pull it until the adhesive releases.

    • Remove the yellow tape that is around the battery.

    • Unlock the ZIF socket and detach the display data interconnect cable from the front panel assembly.

    • If the connector is misaligned, the pins can bend, causing permanent damage.

  5. egcBVVG5OwDWw3Th

    • Remove the three screws from the motherboard using a Phillips screwdriver.

  6. DZLset3qfSqXqmOr

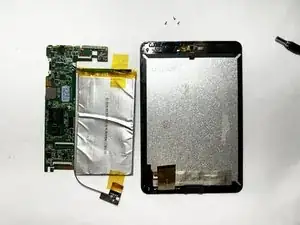

    • Remove the battery and motherboard together from the tablet.

    • If the tablet needs a battery replacement, disconnect the battery and replace it with a new one.

    • The battery might be glued down; you will just need to slowly remove the battery as the adhesive releases.

  7. qYviZOoaSkPQcbxf
    qYviZOoaSkPQcbxf
    fFc5qy1YNVKCHJaU
    CwRVZUwJJ6dMYjTo

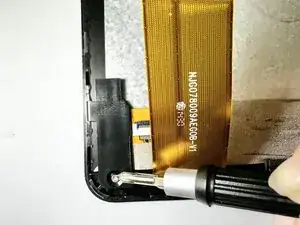

    • Remove the screw from the bottom left of the tablet.

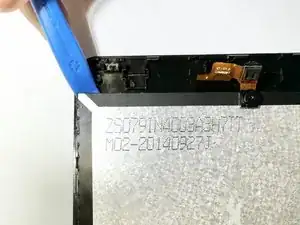

    • Place an opening tool under the screen.

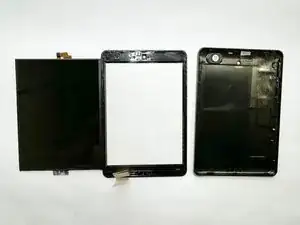

    • Pry up the screen and it will unclip from the clips holding the screen down.

    • Avoid using too much force to prevent the glass from breaking.

Conclusion

To reassemble your device, follow these instructions in reverse order.
