Introduction
Use this guide to replace the USB port of the RCA Lyra X2400.
Tools
-


-

Remove the two Phillips screws from the silver cover at the top of the Lyra.
 -

Slowly wiggle the silver cover while pulling it away from the device.

 -

 -


-

Remove the two Phillips screws from the bottom of the device, next to the charger port and Compact Flash release button.
 -

Pull the silver case from the bottom of the device.

 -

 -


-

Carefully pry up the screen with a plastic opening tool.
 -

Disconnect the screen's ribbon cable from the circuit board.
 -

Remove the screen.

 -

 -


-

Open the case of the Lyra.
 -

Remove the four screws that secure the motherboard to the frame of the Lyra X2400.

 -

 -


-

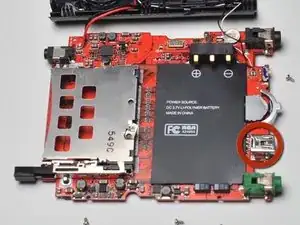

Locate the USB in/out component on your Lyra X2400. If you are having difficulty locating this component the picture to the left will show you where it is located.
 -

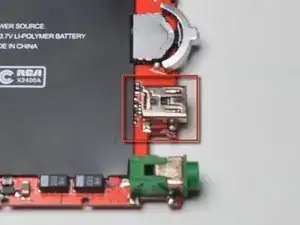

Start using solder/desolder tools to remove the USB in/out.
 -

Once removed replace it with the new working USB in/out.
 -

Use the soldering tools to reattach the component back to the main logic board.

 -


To reassemble your device, follow these instructions in reverse order.
