RCA RCT6378W2 Battery Replacement

Written By: Justin
  • Comments: 0
RCA RCT6378W2 Battery Replacement

Difficulty

Moderate

Steps

6

Time Required

No estimate

Introduction

After noticing your battery life deteriorate or you notice a bulge in the back of the device, it is time to replace the battery. In this guide, you will be removing the following parts:

  1. 1. Back Cover
  2. 2. Battery

  1. oQ3UFFrh2LQ4Hx5B
    oQ3UFFrh2LQ4Hx5B
    PTdfOltPKTGD4dIF
    E6oRh3quuuN3u4aS

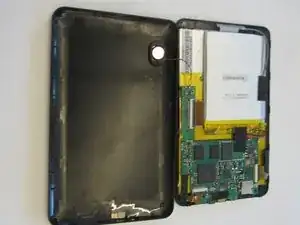

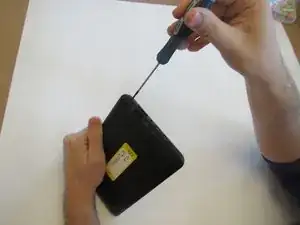

    • Remove two 2.4mm x 4mm screws from bottom of the tablet with Phillips #00 Screwdriver.

  2. rXiagknU1dbeiowY
    rXiagknU1dbeiowY
    tPy5gQIoyBe6WbYi
    AgAiNIArs4KUG3KR

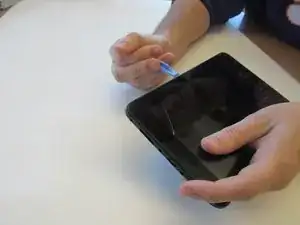

    • Remove back cover with lever tool, exposing the battery and motherboard.

  3. yVK5nj1pTDjbLbv5
    yVK5nj1pTDjbLbv5
    XcQvToQpOgOUSOuX
    lsn6n4TJh2hjyPSk

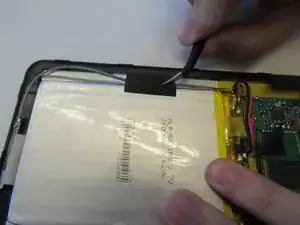

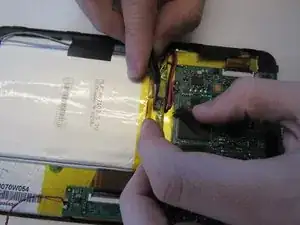

    • Remove the two black tape strips from the battery pack.

  4. YeYBGZUVQDJHLkRA
    YeYBGZUVQDJHLkRA
    35OK3YfdSsPjPVRQ
    usQbnRU4JLledfVf

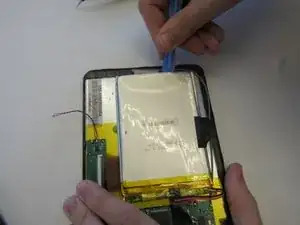

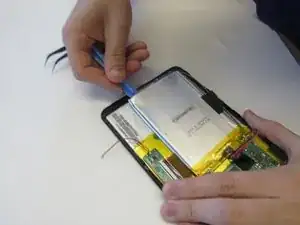

    • Remove the battery pack by carefully prying the battery back from the front cover. Then remove the wires connecting the battery to the motherboard at the motherboard using the tweezers.

  5. h61k3fQwaotKdOxx

    • Replace the damaged or malfunctioning battery with the new battery and wires. The new battery must be stuck back into its original place using thermal tape.

  6. rBJ2HHCfbfFyHb6j
    rBJ2HHCfbfFyHb6j
    qSsl4CFjNCLyWTPN
    NAMhbi2BeMTuwSOF

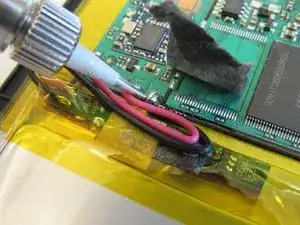

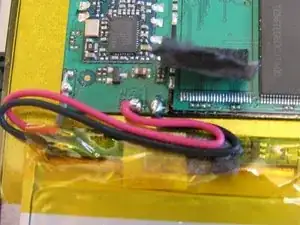

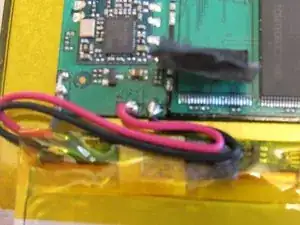

    • The new wires must be soldered back into place on the motherboard at the original location.

    • For tips on soldering techniques, see this Soldering Guide

Conclusion

To reassemble your device, follow these instructions in reverse order.
