RCA RCT6378W2 Battery Replacement

Written By: Justin
  • Comments: 9
RCA RCT6378W2 Battery Replacement

Difficulty

Moderate

Steps

6

Time Required

15 minutes

Introduction

If you notice your battery life deteriorate, or you notice a bulge in the back of the device, it is time to replace the battery. In this guide, you will be removing the following parts:

  1. Back Cover
  2. Battery

Use this guide to replace the battery of your RCA RCT6378W2.

Remove your memory card before beginning this procedure to protect it from any damage.

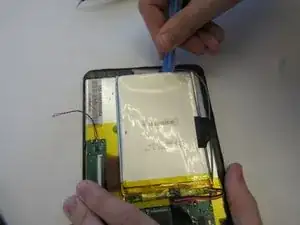

  1. XQnyV24nS2DaHkVd
    XQnyV24nS2DaHkVd
    LpiQLhvEJsw3r6Cw
    qF6vOk25jYMQNLDC

    • Remove the two 2.4 mm x 4 mm Phillips #00 screws from the bottom of the tablet.

    Remove memory card

    James Reason -

  2. CIeFgsNPb2ykEPmm
    CIeFgsNPb2ykEPmm
    lfMkruRptdeIHNBA
    ib1VYRQ1k2qlMniH

    • Remove the back cover with a plastic opening tool, exposing the battery and motherboard.

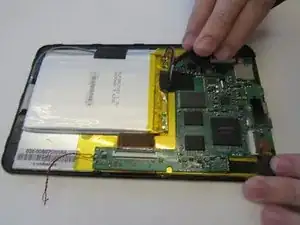

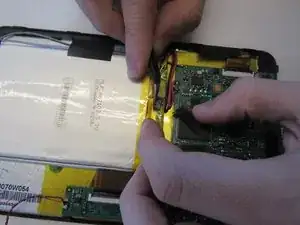

  3. qFGjJ5mnS4vOHa1M
    qFGjJ5mnS4vOHa1M
    vBYVZRrARkf6VkLY
    Xljqe4wKbBwM4Mj6

    • Remove the two black tape strips from the battery pack.

  4. CGJiIhrYeMIjVxIV
    CGJiIhrYeMIjVxIV
    eU2EuAASfhSWjn1c
    kfGRJqZxUr6QZxoU

    • Remove the battery pack by carefully prying the battery back from the front cover. Then, remove the wires connecting the battery to the motherboard at the motherboard using the tweezers.

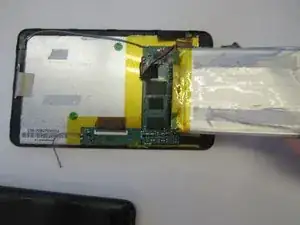

  5. iOhmqxYNURqTFELW

    • Replace the damaged or malfunctioning battery with the new battery and wires. The new battery must be stuck back into its original place using thermal tape.

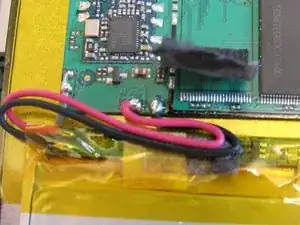

  6. GqnJSMLMrHjuKvXl
    GqnJSMLMrHjuKvXl
    SuAhf4PxeHeyETfj
    gXHBrJQDNkV5QxCM

    • The new wires must be soldered back into place on the motherboard at the original location.

    • For tips on soldering techniques, see this Soldering Guide.

    Most important step not mentioned is to REMOVE memory card. Just lost 10-15 years of non-replaceable memories due to memory card damage.

    James Reason -

Conclusion

To reassemble your device, follow these instructions in reverse order.
