RIM BlackBerry 7510 Disassembly

Written By: Laura Yanez
  • Comments: 0
RIM BlackBerry 7510 Disassembly

Difficulty

Easy

Steps

16

Time Required

30 minutes

Introduction

This guide will show how to disassemble the Blackberry.

  1. 6L4VZKS23AeGsL5g

    • Remove the back cover exposing the battery, and remove the battery.

  2. 2NQCoeMYpBGuECT2

    • Remove the six screws with the screwdriver using the T-5 tip.

  3. RW5xrTGM5SXnsWbL

    • Pry open back cover

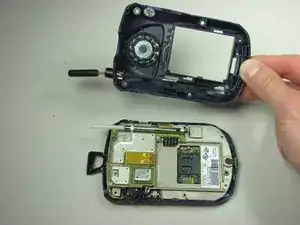

  4. v5p1VCD4heplaMQl

    • Lift off the back cover.

  5. 2sewmqnJJUbrgnqe

    • Unscrew the two screws with a T-6 screwdriver head

  6. VQ6HVNHlNhDdwQPw

    • Remove chip

  7. 6N5PyxIO12B3tbDw

    • Unscrew to remove the back plate

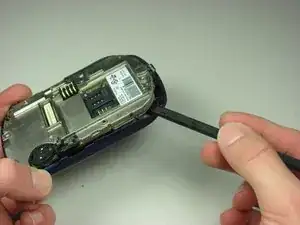

  8. xoyfTmmYpLGpVFJU

    • Carefully pry off back plate

  9. MOdgXHyeMKY2ao1M

    • Take off front cover and keypad

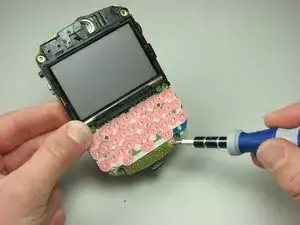

  10. q3jQfuoZGErS4FDh

    • Remove one screw in the front.

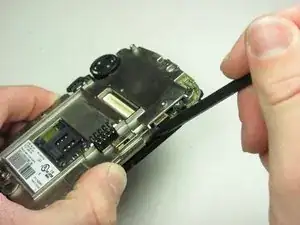

  11. 1cxcdcsNQbl4Xm2V

    • Pry the two parts apart.

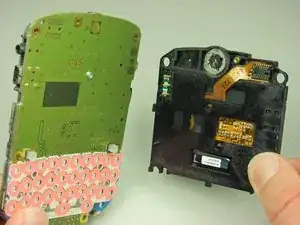

  12. COXLGk5XJrbnfDJu

    • The screen is now apart from the phone.

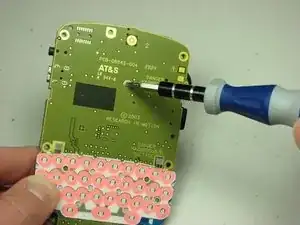

  13. UEAQSJEnblRkQX13

    • Using the Philips screwdriver unscrew center screw.

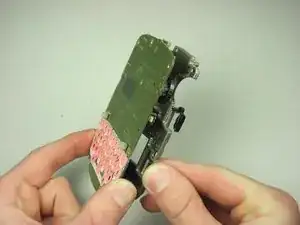

  14. tbMNKZi1huCkA4ZN

    • The final two parts now come apart.

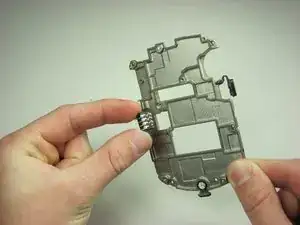

  15. IxO2PPcNOt2WjWIA

    • The phone is now completely disassembled. Handle back with care shown piece comes right off.

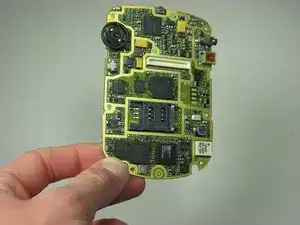

  16. Dwhsx1AQUTBpEuCn

    • Your blackberry has been fully disassembled.

Conclusion

To reassemble your device, follow these instructions in reverse order.
