Reaching the Speaker and Camera in SONY Ericsson W890i Cell Phone

Written By: Bob
  • Comments: 0
Reaching the Speaker and Camera in SONY Ericsson W890i Cell Phone

Difficulty

Moderate

Steps

8

Time Required

10 - 15 minutes

Introduction

Many times, the speaker or the camera in this model of the Sony Ericsson cease to function. This is a guide that will show you how to reach these so that you can replace them quickly and without needing to send it in.

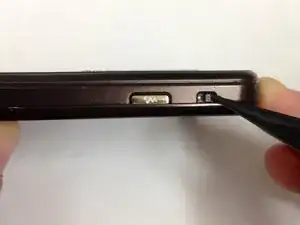

  1. rQHVWnFLmRKTpyrd

    • Flick the two lock tabs into the unlocked positions by pushing each button forward.

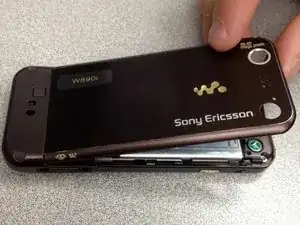

  2. xOeSyTFqNXyXvSPd

    • Pop the back cover up using the groove on the top of the phone.

  3. Is5ZR4dpyLMfkOFv

    • You can now access the phone's battery.

    • Using a spudger, remove the battery and set it aside.

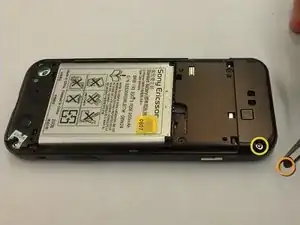

  4. vDYGMHoxyVCGltNX
    vDYGMHoxyVCGltNX
    NjfkZUc24UBQUCtM

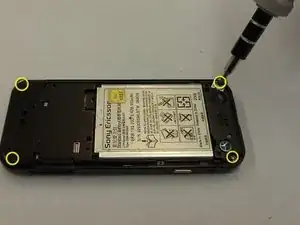

    • Two rubber buttons cover the bottom two screws. Remove these rubber coverings to access the phone screws.

    • Using a T6 torx wrench, remove the four small screws at the top and bottom corners on the backside of the phone.

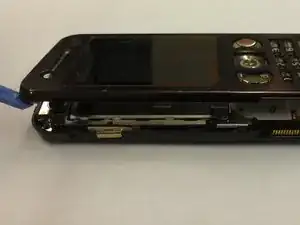

  5. t1Gf1ujHRWvXfZEE

    • Carefully pry off the faceplate using a spudger. Insert the spudger into the middle of the phone.

    • Start near a button and carefully work your way around the phone until the faceplate pops off.

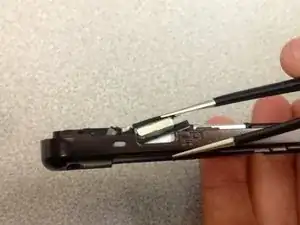

  6. GJuKLFRZbsixRNaR

    • Remove the plastic and metal buttons located around the seam and place off to the side.

    • Be careful not to lose them!

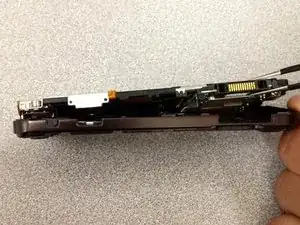

  7. CVFTosE2CDnQDqBQ

    • With a tweezer, pry off the back metal plate.

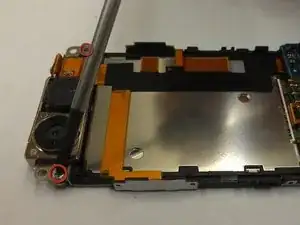

  8. wOXEa6lsxN2STeeK
    wOXEa6lsxN2STeeK

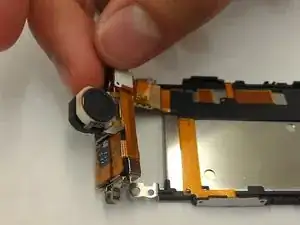

    SyaxkPmrFNbAXppr

    • The speaker and camera combo is accessible after the removal of two small #00 screws. Use the #00 Philips Screwdriver for this step.

    • The piece is now free to move from the phone core.

Conclusion

To reassemble your device, follow these instructions in reverse order.
