Recharging A/C Refrigerant for 2016 Hyundai Elantra

Written By: Austin Meadowcroft
  • Comments: 0
Recharging A/C Refrigerant for 2016 Hyundai Elantra

Difficulty

Easy

Steps

8

Time Required

5 - 20 minutes

Introduction

If your Elantra’s A/C hasn’t been blowing cold air for a while don’t panic. The A/C probably just needs to be recharged. In this guide, we will explain how to recharge your 2016 Hyundai Elantra A/C.

  1. asywNJSJUwClWR1M

    • Get refrigerant and read the pressure chart carefully. This is located on the side of the can.

  2. TGjiQBPpS1TDK2KQ
    TGjiQBPpS1TDK2KQ
    6TdQlQs6CD3X1RH3
    6JMIRO3FUeGCLbbp

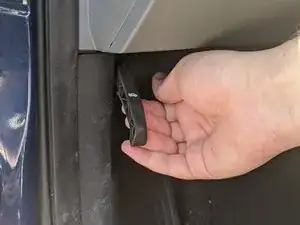

    • Find and pull the lever to the hood on the driver's side of the vehicle.

  3. OBYj2u4YNaOAxiPW
    OBYj2u4YNaOAxiPW
    xAnJCR3FYxsokYth
    rxlXroIZGekPvgUZ

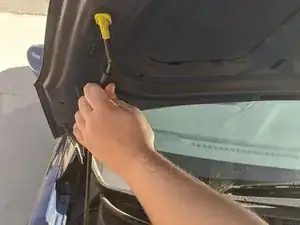

    • Lift the hood while pulling the lever under the center of the hood. Next, prop up the hood with the hood strut.

  4. CcGI1CuIDDmrdObI
    CcGI1CuIDDmrdObI
    mVZNMaCsLSP2gvOg

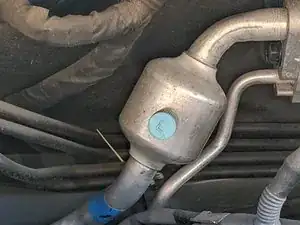

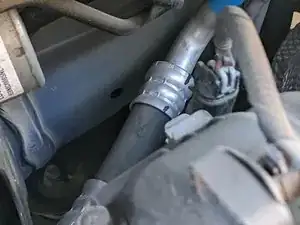

    • Locate the low-pressure port by following the low-pressure hose (the cap will have an "L" on it).

  5. QadOH1djBtFLD2A3
    QadOH1djBtFLD2A3
    ljQTEgSkUMP4btpj

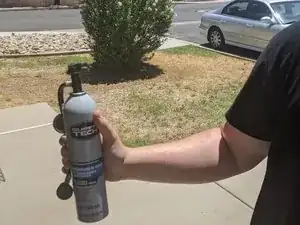

    • Shake the can well.

  6. sjkL5l2qFnoHgQcV

    • Connect the refrigerant hose to the low-pressure port.

  7. nwZJcleNQSsXF2JF

    • Start the vehicle and turn on the A/C all the way on.

  8. eUiXbTjROm1MvHNC
    eUiXbTjROm1MvHNC
    nPFHugFvWPN3s1n2
    MaooW2QxQBXT3MOe

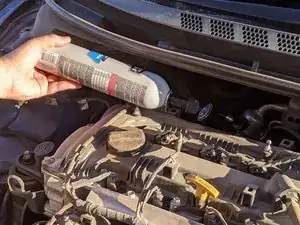

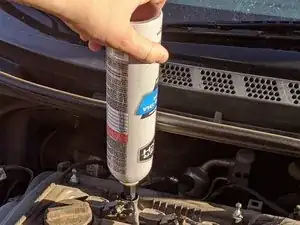

    • While tipping the can 90 degrees back and forth, fill your vehicle (until the gauge reads as the can specifies).

Conclusion

To recharge your vehicle, follow these instructions in order.
