Remington S5500 Power Supply Cable Removal

Written By: Benjamin Yohe
  • Comments: 7
Remington S5500 Power Supply Cable Removal

Difficulty

Easy

Steps

4

Time Required

10 minutes

Introduction

Two tools required for the completion of this task include a PH1 screwdriver, and a prying tool.

All screws on this device are 10mm (0.393 in).

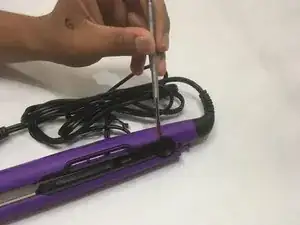

  1. H1mnDOOqQF6dOUqX
    H1mnDOOqQF6dOUqX

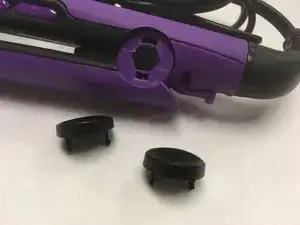

    1YvWPBRlqSpLQh5h

    • Place the prying tool in between the hair straightener and the aligning cap.

    • Push forwards on the prying tool to pop off the aligning cap.

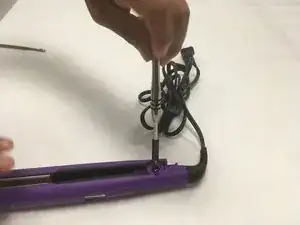

  2. mPduDgyStSAmgWuR
    mPduDgyStSAmgWuR

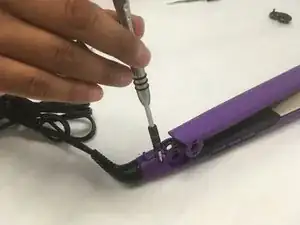

    IoQOAQJ4pUQDRgHN

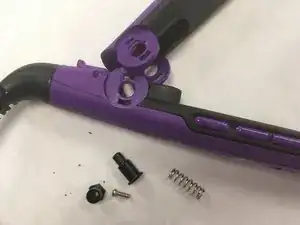

    dhbXcTuri3FGNamc

    • Remove the screws with the Phillips #1 screwdriver located underneath the aligning cap, one on each side of the straightener.

    • Use the prying tool to remove the aligning rods after the removal of the screws.

    • Gently separate each half of the hair straightener.

    • The spring located in the middle of this mechanism may pop out and can get lost very easily. Try to separate the two components slowly.

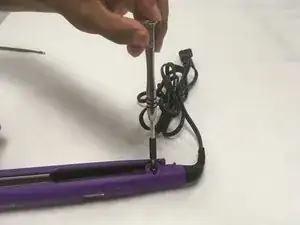

  3. VckkICG4nBsMOwLX
    VckkICG4nBsMOwLX

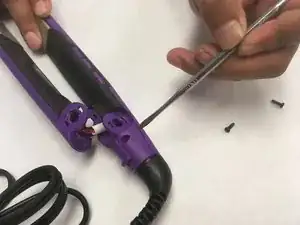

    SqdbOsHYmMxBP2j5

    • After the hair straightener is separated, use a Phillips #1 screwdriver to remove the two screws located on the lower half of the straightener.

    • Use the prying tool to remove the hinge cover.

    It turns out this is really the only step you need to do to get at the plug for the wire. Remove the two screws and pop off the cover, remove the old swivel power connector and replace it. Put the cover back on and replace the two screws

    raoulrod -

  4. fCMWAhEUrFJKSHfm
    fCMWAhEUrFJKSHfm

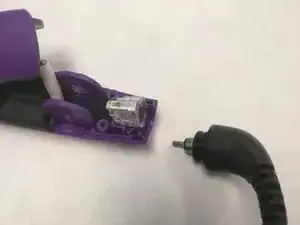

    PMXQUIRgwM2diuxy

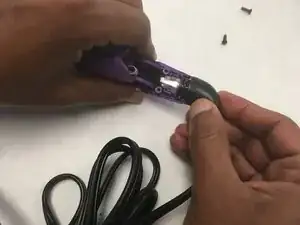

    • Pull upwards while pulling outwards to disconnect the wire from the housing.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Benjamin Yohe

Member since: 11/07/18

303 Reputation

6 comments

Excelente trabajo! Muchas gracias por la información!

Ronnetto -

is there a place where you can buy and replace the power cable, or the plug ?

alexandru popa -

the slip ring plug that is ..

alexandru popa -

Hello,

from where did you get the spare power cord ?

Kes -

part number would be helpful?

Steven Lamprell -

Howdy!

Turns out step 3 is really the only step you need to do. Remove the two screws that cover the swivel power connector. You don't need to mess with the hinge at all.

Picture of the power connector removed and hinge intact

raoulrod -
