Introduction

This is a prerequisite-only guide! This guide is part of another procedure and is not meant to be used alone.

  1. 5R51rpeBCID1Ylcm
    5R51rpeBCID1Ylcm
    Ua3XgdqBZphRcuMF

    • Make sure the engine is off and cool to the touch before you proceed.

  2. LEDQcVLuJnOHVEGQ

    • Place wheel chocks against the roller and rear wheel to prevent the machine from moving.

  3. 2DV3qBu1nDeKwS6y
    2DV3qBu1nDeKwS6y
    GXPy6GNkQFSRBawK

    • Flip the gas shutoff switch next to the motor to the left into the off position.

  4. s52JhZLLpWSNPVpF
    s52JhZLLpWSNPVpF
    H44OwOfpdqNcCfmA

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

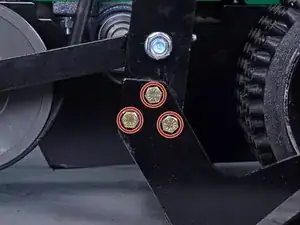

  5. dsQuh3pVk3uWPsGn

    • Use a 1/2 inch socket to remove the three bolts securing the cutter blade on the left side of the machine.

    • You may need to use a 1/2 inch wrench in combination with the socket wrench to hold the nuts in place.

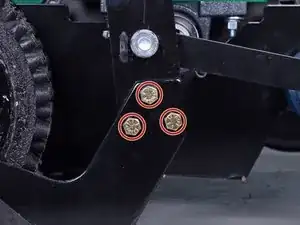

  6. W2rnLQmhPJPilQYJ

    • Use a 1/2 inch socket to remove the three bolts securing the cutter blade on the right side of the machine.

    • You may need to use a 1/2 inch wrench in combination with the socket wrench to hold the nuts in place.

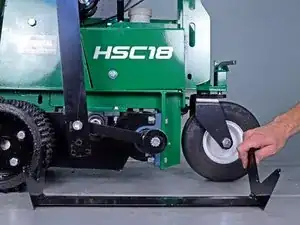

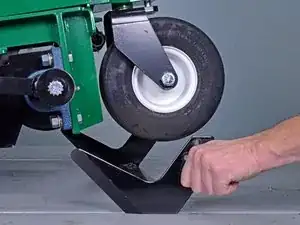

  7. vkbKvCRCbeSHdhCW
    vkbKvCRCbeSHdhCW
    AZgqRYAT2vDaxObn
    t6mHOal3o1yZGYNB

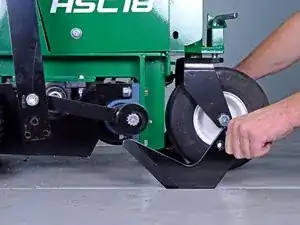

    • Slide the cutter blade out from under the machine to remove it.

    • Do not handle the blade from the cutting edge.

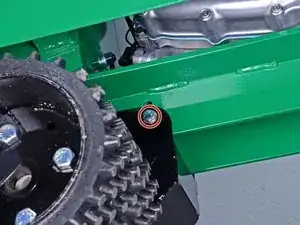

  8. pboOUpROmCx1EdTT

    • Use a 1/2 inch socket to remove the 130 mm-long bolt securing the chain guard.

  9. oOuQrRLAMGLyY6DU

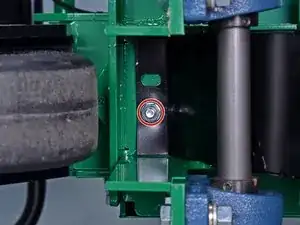

    • Carefully tilt the sod cutter on its side.

    • Use a 9/16 inch socket to remove the nut securing the chain guard.

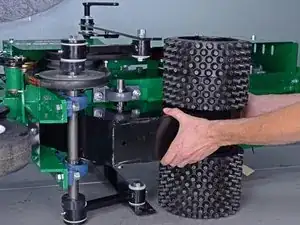

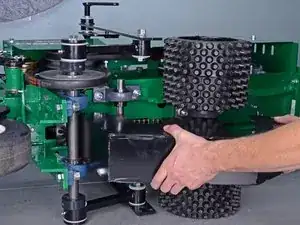

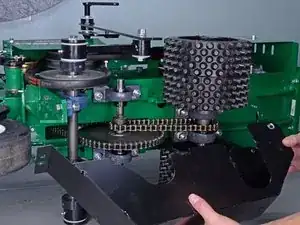

  10. kXMrafWfXF1KXbFE
    kXMrafWfXF1KXbFE
    oQmNKpfyJ53tjTpB
    S5XCtPCEZEY4j1vS

    • Remove the chain guard.
