Removing the HP Elitebook 6930p Bluetooth module

Written By: Richdave
  • Comments: 0
Removing the HP Elitebook 6930p Bluetooth module

Difficulty

Easy

Steps

2

Time Required

5 minutes

Introduction

This guide will show you how to locate and remove the Bluetooth module

  1. AAOUjOHZkOTWs2JT
    AAOUjOHZkOTWs2JT
    qJjsTHg55QxaoiKd
    L66CHAAZKtUVa4iU

    • Flip laptop over and locate the battery release button

    • Push release button to the left to release battery and gently pull battery from the laptop

  2. fvtED5FcKERefku2
    fvtED5FcKERefku2
    Vm6SHVPkZfUNIfD4
    x3nYEVh12tLBvuJD

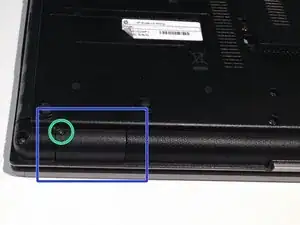

    • Locate the Bluetooth module cover on the bottom of the laptop

    • Loosen the M2.0×5.0 captive screw and remove the cover by by lifting it straight up

    • The Bluetooth module is connected to the laptop via a small cable with very fine wires - take care not to damage the cable when you pull the module out of the case.

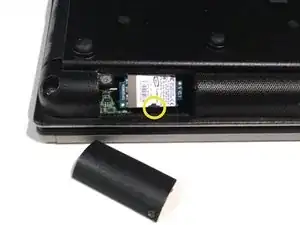

    • Gently lift the Bluetooth module up and over the retaining clip. A plastic spudger may be useful.

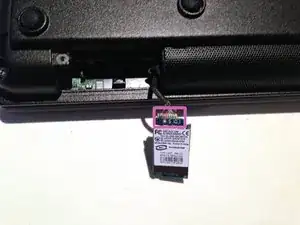

    • Disconnect the connector being careful not to damage the fine wires on the cable.

Conclusion

To reassemble your device, follow these instructions in reverse order.
