Introduction
Needed remedies:
- Screwdrivers
- Brush
- Oil
-
-
Remove battery
-
Turn Netbook upside down
-
Unscrew all screws from the back of the pc
-
Remove the back plate
-

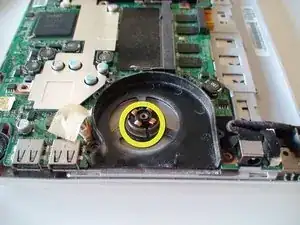

Unscrew metal cover on top of fan
-
-
-

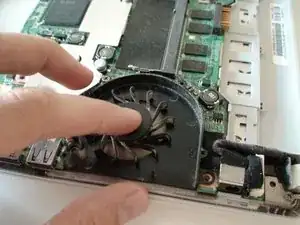

Gently lift the fan making sure not to drop dust into the motor of the fan below
-
Clean fan blades
-
Clean the fan house
-

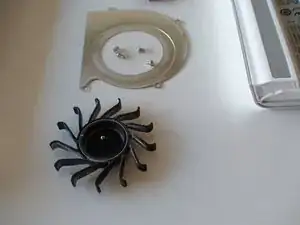

place the fan upside down so the metal pin points upwards
-
-
-
Apply oil
-

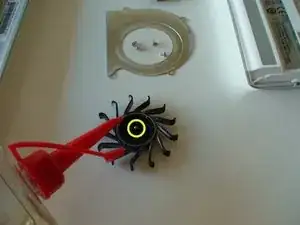

Apply one or two droplets of oil onto the metal pin
-
Place it on the motor and make sure it rotates without problems
-
In case there is still sounds coming from the fan when turned on, redo the cleaning and lubrication.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
