Introduction
-
-
Do your printed papers have these or similar vertical black and yellow lines?
-
Then this is the tutorial for you to make them disappear
-
-
-
Open the printer front and take everything out
-

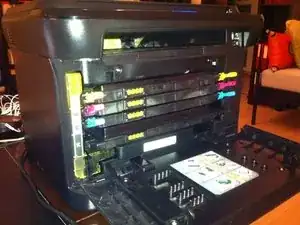

Take out the toners
-
Take out the drum together with the waste bin
-
-
-

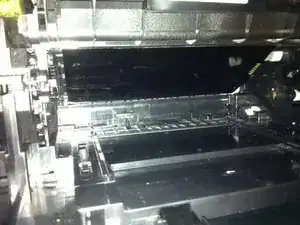

Your printer should now look like in the image attached
-
Use a flashlight to see inside the printer
-

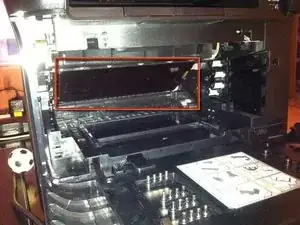

On the glossy black plastic you will see vertical lines of color which are the cause of your printers problem
-
-
-

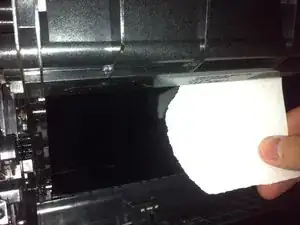

Use a small white paper and try to stick it into the top - like shown
-
Move it from left to right and drag it out again
-

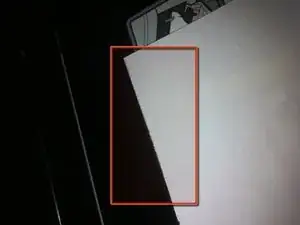

You will see that it is pretty dirty afterwards
-
Do this multiple times and clean the black glossy plastic with a cotton cloth - be careful not to scratch it
-
-
-
Close the printer again and print some pages
-
After the 2nd or 3rd the black vertical lines should be gone completely
-
Have fun - again!
-
To reassemble your device, follow these instructions in reverse order.
7 comments
Michael I have a thick horizontal line that repeats as a Ghost image. Will this help fix it? I have tried cleaning the paper track and the rollers etc, with no such luck.
same here, if i print a blank page it has various horizontal shadows and looks dirty
My printer was many years practically only B&W because of awful colors. This trick helped to restore colors. Thank you!
