Introduction
Tools
-

                  -

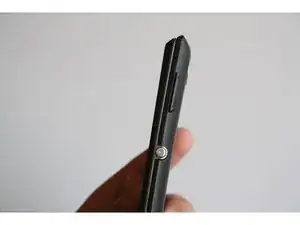

            The Xperia L model
-
            Gently open the phone case.
-

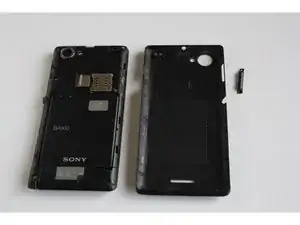

            The phone body, back case and the detached volume control button.

-

-

                  -

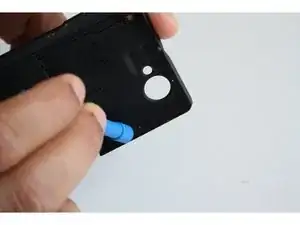

            Using the plastic opening tools in the iFixit kit, pull up the flattened plastic notches that will hold the volume control button in place.
-

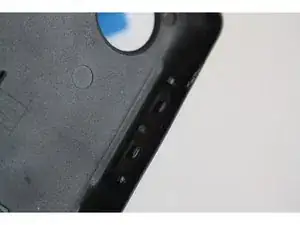

            You can see the notches on the back case and the holes in the volume control button that snap fit in them.

-

-

                  -

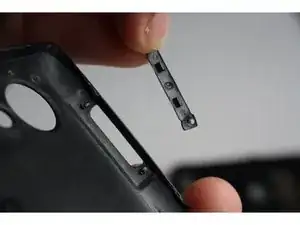

            Place the volume control button back in the slot.
-
            Adjust the holes on the button in a way that they snap to the raised notches on the back panel.
-

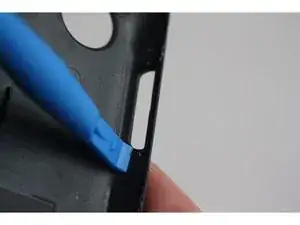

            Press down the raised plastic notches using the back of the plastic opening tool from the kit.

-

-

                  -
            The volume control button is now attached in its slot.
-

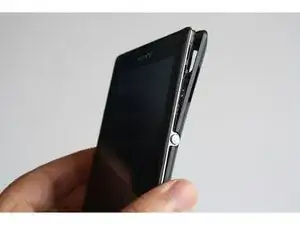

            Reassemble the phone back by snapping the back case to the phone body.
-
            The volume control/zoom button is good to use!

-

To reassemble your device, follow these instructions in reverse order.
