Replace BlackBerry 7130e Speaker

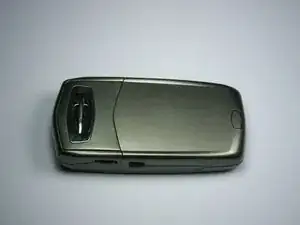

Turn the phone over so that the screen is facing the work surface

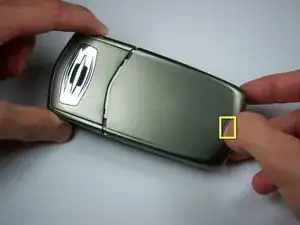

Press your thumb against the battery latch. While pressing on latch, slide off battery cover towards the bottom of the phone.

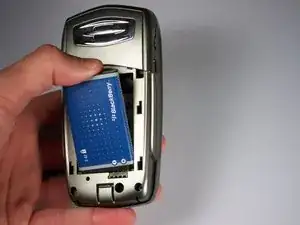

Remove the battery by pushing downward on the area where prongs connect to bottom inside of the phone while using a thumb, finger, or tool to pull on the top of the battery to lift it out.

Using the T6 Torx screwdriver, remove the bottom two screws on the back of the phone.

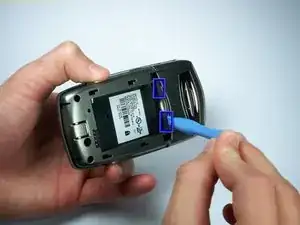

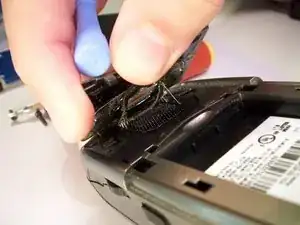

Remove speaker phone cover by unsecuring the two latches on the edge close to top of the phone with the plastic opening tool.

Detach the speaker phone cover by pulling up on the bottom of the speaker phone cover.

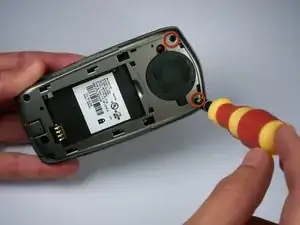

Remove top two screws with T6 Torx screw driver, from the back of phone.

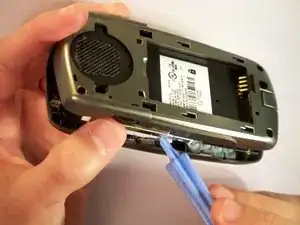

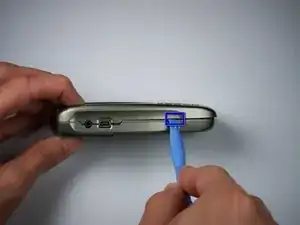

Turn the phone sideways and unlatch the hinge on one side of the phone by pushing inwards and twisting to the side with the plastic opening tool.

You should now be able to easily separate the phone into two pieces.

Set aside the bottom part of the phone.

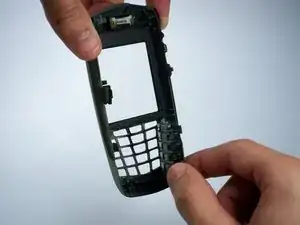

Drop out the rubber keypad from the top, so that it does not get in the way.

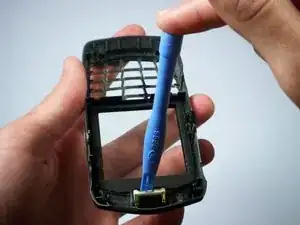

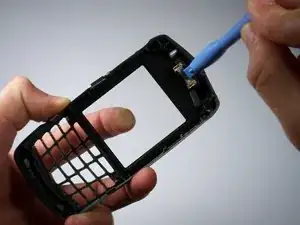

Use the plastic separator tool to apply significant pressure in a downward motion on the top of the white speaker unit.

The speaker unit should become loose.

You can now push the separating tool beneath the speaker and pop it out.

Once the defective unit is removed, pop your new speaker unit back into place.
