Replace hard drive why! W253EU

Written By: Felice Suglia
  • Comments: 0
Replace hard drive why! W253EU

Difficulty

Very easy

Steps

3

Time Required

10 minutes

Introduction

The same instructions can also be used to replace the original hard drive (SATA 500 GB, 5'400 rpm) with a more powerful hard drive or an SSD hard drive.

  1. Y2CKG6MZ2OPyNTtc
    Y2CKG6MZ2OPyNTtc
    mU1LZxMZePlDArk5
    uohDDoUKT6jCwhXc

    • Turn off the computer.

    • Before each operation it is important to start with the removal of the accumulator.

    • Take the slide unlocked into position, remove the battery.

  2. x56LhXQMbbIs4LoM
    x56LhXQMbbIs4LoM
    KEyjZDsiCoCIih2Y

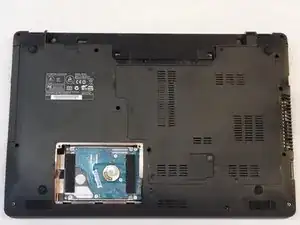

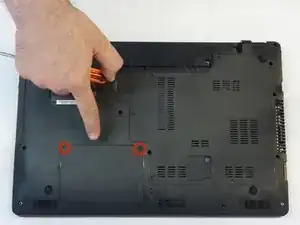

    • Using the Phillips # 1 screwdriver, remove the hard drive cover.

    • Grasp the transparent tab to separate the hardtop from the SATA connector.

  3. n3YVO2SIxYpbru6S
    n3YVO2SIxYpbru6S
    wMUxNfHIQhpDSKST

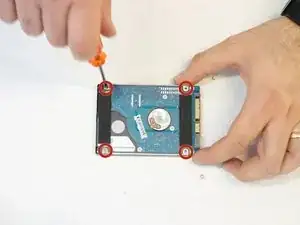

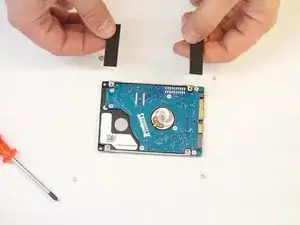

    • Using the Phillips # 1 screwdriver, remove the four screws securing the plastic cover.

    • This cover is then reinstalled on the new hard drive.

Conclusion

For reassembly, follow the instructions in reverse order.
