SGH-A117 keypad replacement

Written By: Stephanie Isaac

Comments: 0

Difficulty

Moderate

Steps

Time Required

30 minutes - 1 hour

Introduction

The keypad is something that is used quite often on a phone when texting or emailing. Due to the constant use of the keypad, the keypad can possibly become worn out.

The process of replacing the keypad is a bit challenging and requires patience and attention to detail. The equipment you are working with is very delicate and if not assembled properly, it will break.

Tools

Parts

Samsung SGH-A117 Keypad

Step 1

Remove the battery by pressing the battery lock down and slide the battery cover away.

Step 2

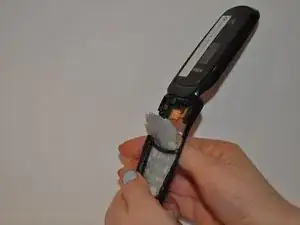

Lift the bottom of the battery and then move it up and away.

Step 3

Locate the 4 screws holes on the phone and remove them with the #000 Philips Head screwdriver. (See red circles)

Step 4

Using the plastic opening tool, gently pry open the back piece of the phone.
Make sure to do this very carefully, as the back part of the phone is very thin and fragile.

Step 5

Use the metal prying tool to gently flick up the rectangular connector. (Because this device is on the smaller side, the rectangular connector may only need a simple flick with the prying tool)
Simply flick the rectangular connector up from its socket. (Highlighted by the red square)
