Salter Brecknell Model 311 Disassembly

Written By: Steven
  • Comments: 0
Salter Brecknell Model 311 Disassembly

Difficulty

Easy

Steps

10

Time Required

5 minutes

Introduction

This is a guide on how to disassemble the Salter Brecknell Model 311 digital scale. It identifies the steps you will need to field strip and inspect the scale.

  1. RAYMjbuNDwocnl3W
    RAYMjbuNDwocnl3W
    cpOR1Da4G3wVFTBY

    • Flip the scale over, remove batteries.

    • It requires 4 AA batteries and has two plastic clips to hold the upper batteries.

    • Be careful not to break the plastic clips.

  2. rLHYmiid4YtiBQfN

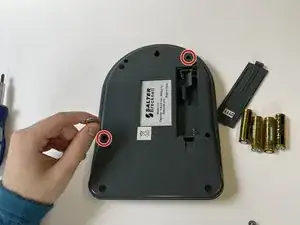

    • Remove screws at 1 o'clock and 7 o'clock positions, using the mini screwdriver.

    • Be careful with the mini screwdriver to refrain from stripping the head of the screw.

  3. 3o6IAsTBT4lrurMD

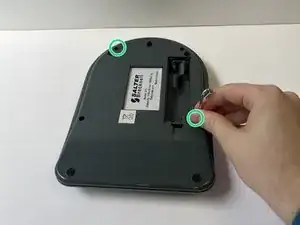

    • Remove screws at 5 o'clock and 11 o'clock positions, using the mini screwdriver.

    • Unscrew them slowly, keeping the tool directly perpendicular to the surface to avoid damage, as they are self-tapping.

  4. hdH6QLyHORyLiA1O
    hdH6QLyHORyLiA1O
    d2JuOI5QMBnAGiNS

    • Remove the weighing platform by unscrewing carefully.

    • Rotate it about 60 degrees so that it can be lifted vertically.

  5. LmqSo5AFNfwySEFY

    • Gently tap the side of the upper plastic half, be careful as it can be snapped easily.

    • There are two clips that attach the upper half to the bottom half.

    • Be careful to avoid breaking the clips off.

  6. gBfH2GsODMevlFhX

    • Remove the two central screws, connecting the scale weight.

    • The tightness of the screws can affect the scale's accuracy, so it is important to take note of this.

  7. MGYqkVnRN1U323WG

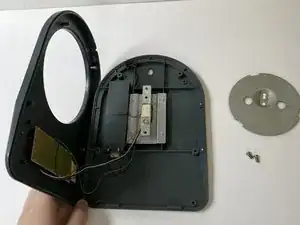

    • Lift the top half of the plastic shell to the side. Be careful, as the electrical circuit board will connect both parts.

    • The wires are exceptionally thin, be careful to not rip them.

  8. THMuXrK3xTYvBMbv
    THMuXrK3xTYvBMbv
    AgDEVC31mV5CjlFP

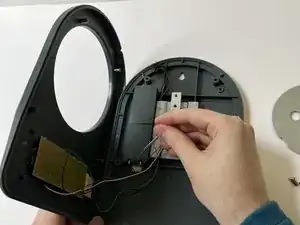

    • Check for wiring issues connecting to components; look for torn cables.

    • Look for loose wires or connections. Every single wire should be fully attached at both ends.

  9. JUr2IReGZDDlcCCX

    • Check back and front of circuit board for liquid damage.

    • Sometimes you can see damage from the back, but if you inspect the front side, it should be very obvious.

    • If brown stains are visible on the board, there is likely liquid damage on the board.

    • If you find liquid damage, unscrew the mini screws, and replace the board.

    • You will need to re-solder the electrical cables if you replace the board.

  10. kvMPYT2OjcHQV3Gp

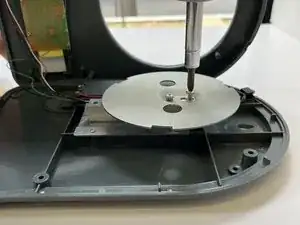

    • Reassemble by inverting steps 1 - 7.

    • Remember to only torque the central screws till they will not back out, not more.

Conclusion

To reassemble your device, follow these instructions in reverse order.
