Samsung 27E510C Motherboard Replacement

Written By: giggythore

Comments: 1

Difficulty

Moderate

Steps

Time Required

4 - 5 minutes

Introduction

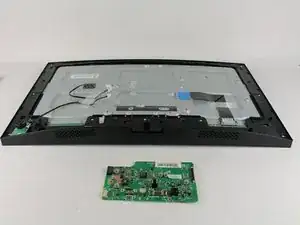

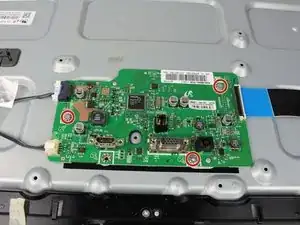

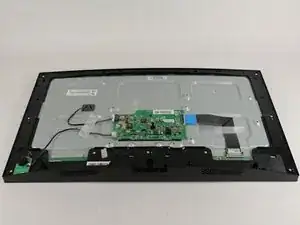

The motherboard is the electronic hub inside the monitor connecting each of its electrical components, including the navigation button, the screen, and the HDMI/VGA ports.

Tools

Step 1

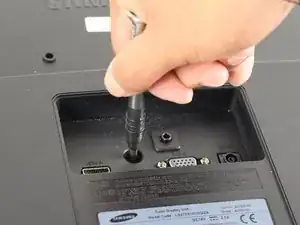

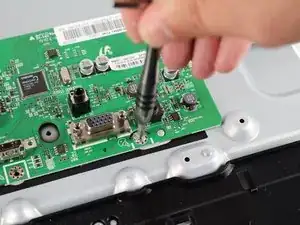

Use the #1 Phillips head screw driver to remove each 13.75mm length screw from the rear panel.
The screw alone with the ports is a different size than the rest, its length is 12mm.

Step 2

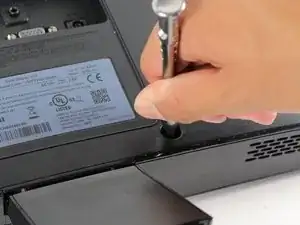

Insert the heavy duty spudger in between the monitors back panel and its frame.
Use the heavy duty spudger to pry open the back panel.
Over aggressive prying could break the tabs holding the back panel in place.

Broken some of the tabs case was not exclusive force but the method of force the bottom panel should NOT be pushed towards you. Create seperation all over the bottom side and slowly pull the cover off.

Texas2 -

Step 3

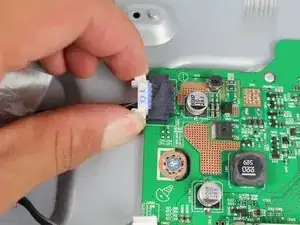

Remove the navigation button connector by pulling while holding down its thumb tab.

Step 4

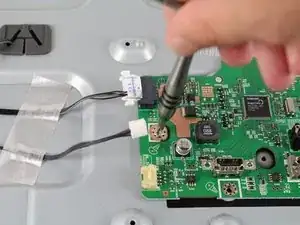

Remove the screen connector by gripping its sides and gently pulling while wiggling back and forth.

Step 5

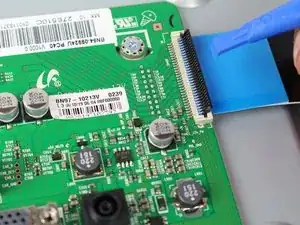

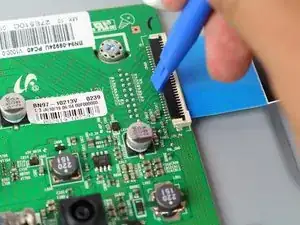

For the ribbon cable, Lift the tab from the side facing the inside of the mother board with your fingernail or a spudger.

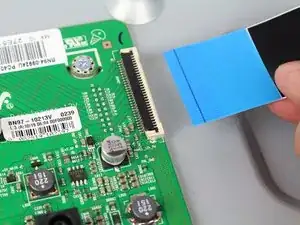

Remove the cable by pulling while lifting slightly.
If the cable does not come out easily, than the secure tab may not be fully opened.
