Samsung 27E510C Power Adapter Port Replacement

Written By: Levi Thompson
  • Comments: 1
Samsung 27E510C Power Adapter Port Replacement

Difficulty

Difficult

Steps

9

Time Required

5 - 10 minutes

Introduction

The power adapter port allows power input to the display. The port may need to be replaced if trying a new power adapter cable does not fix display issues.

  1. UJiTggQWHYuvvvK6
    UJiTggQWHYuvvvK6
    3BcbwPZ5foxV2Tjo
    CLKqqyxVDD2hgu4U

    • Use the #1 Phillips head screw driver to remove each 13.75mm length screw from the rear panel.

    • The screw alone with the ports is a different size than the rest, its length is 12mm.

  2. YWHirDGt2l4EUIGF
    YWHirDGt2l4EUIGF
    rhXToE3keAAyumZ2

    • Insert the heavy duty spudger in between the monitors back panel and its frame.

    • Use the heavy duty spudger to pry open the back panel.

    • Over aggressive prying could break the tabs holding the back panel in place.

    Broken some of the tabs case was not exclusive force but the method of force the bottom panel should NOT be pushed towards you. Create seperation all over the bottom side and slowly pull the cover off.

    Texas2 -

  3. TaNFRP3ngRONKitW

    • Remove the navigation button connector by pulling while holding down its thumb tab.

  4. buKIIfiMZAB2YXFX

    • Remove the screen connector by gripping its sides and gently pulling while wiggling back and forth.

  5. MqkYV4yLOpF1ZH5w
    MqkYV4yLOpF1ZH5w
    mIkcrZYbZ6kTxH4U
    niDYnEXCCenc1rNV

    • For the ribbon cable, Lift the tab from the side facing the inside of the mother board with your fingernail or a spudger.

    • Remove the cable by pulling while lifting slightly.

    • If the cable does not come out easily, than the secure tab may not be fully opened.

  6. Wc2qStTUgxCQWcNn
    Wc2qStTUgxCQWcNn
    fVOUVeiqKRRcC1ik
    V2iEsHbJQBCLc1RG

    • Remove each of the 5mm length screws attaching the motherboard to the body of the monitor using a #1 Phillips head screwdriver.

  7. H5TWfCfsJxf43YQj
    H5TWfCfsJxf43YQj
    2fch62SkbXkHIOJo

    • Using both hands, lift the board off of the monitor body by the motherboards base.

  8. NxmFXGCyRSTFfdK2
    NxmFXGCyRSTFfdK2
    EtOGKMbTZVmvMcfu

    • Desolder the indicated leads on the back of the motherboard.

    • The power adapter port should fall out of the board after the solder is removed.

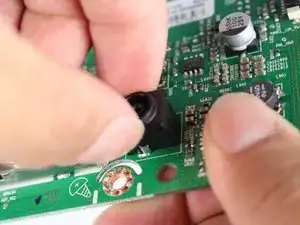

  9. 3osxyvxRnCZBYnfZ

    • If the power adapter port does not fall out of the board, try tugging on it with your hand.

    • The power adapter port may be too hot to touch right after desoldering.

    • Excessive tugging could damage the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
