Samsung CLP-300 Fuser Unit Replacement

Written By: Heather Howard
  • Comments: 4
Samsung CLP-300 Fuser Unit Replacement

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

Follow these steps to replace the fuser unit by taking off the back cover of your Samsung CLP-300.

  1. agPMvYdOFxHnYQmg
    agPMvYdOFxHnYQmg
    akqekfGXIVwGMuIe

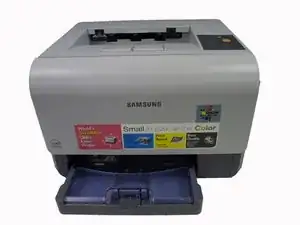

    • Turn the printer off and wait a few minutes for it to cool.

    • Turn printer around so that you are looking at the rear panel.

  2. y3focHYWvkLAWkHN

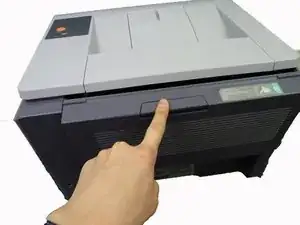

    • Open back of printer by pushing down handle.

  3. vyKVmMQQSiKwdXgr
    vyKVmMQQSiKwdXgr
    MJBmXunCeUHCi4PQ

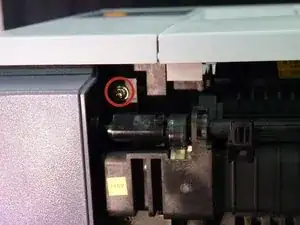

    • Remove the four screws that attach the fuser unit to the printer.

  4. Cu5Y3ygE12k2LsZf
    Cu5Y3ygE12k2LsZf
    tJMVYWH1VBM2WDjQ

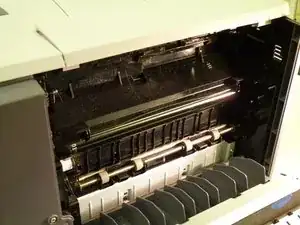

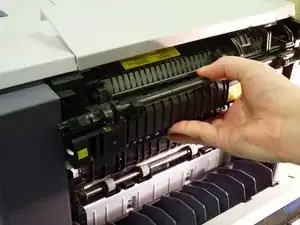

    • Slide fuser unit out of the printer.

    • Remove packaging from new fuser unit.

    • Insert new fuser unit.

    How do you plug in the cables? you need to remove the side panel I think.

    andywood_goldcliff -

    it wont just pull out, white and black power cables are still commected

    harie gee -

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Heather Howard

Member since: 15/10/14

586 Reputation

2 comments

how do you unplug the old fuser unit and plug in the new fuser unit - you don’t show how to do that.

Dianne Martin -

The plug in on the left side, no need to unplug it because it is part of the fuser unit.

Michael R. Glatfelter, Jr. -
