Samsung CLP-300 Imaging Unit Replacement

Written By: Heather Howard
  • Comments: 0
Samsung CLP-300 Imaging Unit Replacement

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

Follow these easy steps to replace the imaging unit in your Samsung CLP-300.

  1. IK3XvKLWIfOROnqb

    • Turn the printer off and wait a few minutes for it to cool.

  2. ueKQYHHfFymttxvl
    ueKQYHHfFymttxvl
    dAKpMwDHC5bYPf1L

    • Open the front cover

  3. ejqFT2ABNLCCtSir

    • Remove waste toner container from the printer.

  4. tQTyoHv2ebSbpYEo
    tQTyoHv2ebSbpYEo
    Vy2YBZRDojo2NCrn
    JpJtZ1txCjyRZOZU

    • Pull the imaging unit out of the printer using bottom handle.

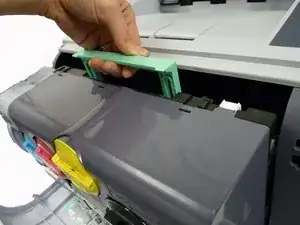

    • Use green handle on top of imaging unit to steady unit as you pull it out.

    • Holding the top and bottom handles on the new imaging unit, slide the unit in the printer until you hear a “click.”

    • Remove new imaging unit from its packaging making sure to remove protective paper and devices from unit

    • Do not expose new imaging unit to light for more than a few minutes. Covering unit with a piece of paper is sufficient protection while you complete repair.

    • If you hear a crackling sound once the printer turns on the imaging unit is not installed correctly. Take out and reinsert the unit.

Conclusion

To reassemble your device, follow these instructions in reverse order.
