Samsung CLP-300 Waste Toner Container Replacement

Written By: Heather Howard
  • Comments: 0
Samsung CLP-300 Waste Toner Container Replacement

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

Follow these easy steps to replace your old waste toner container. When waste toner container needs to be replaced a smart panel program window should appear on your computer.

  1. jOZBmZHNn311B1GO

    • Turn the printer off and wait a few minutes for it to cool.

  2. SUogBIK3eZWLfxCA
    SUogBIK3eZWLfxCA
    65S6GZrU1RDg6em3

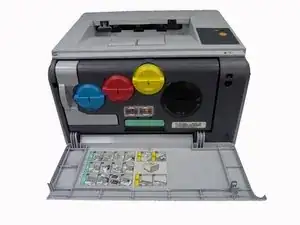

    • Open the front cover.

  3. kRjK2TVcjSOvQatw

    • Pull the waste toner container out of the printer using the handle.

    • Make sure to keep waste toner container upright to avoid spillage.

  4. FcaV6GsqcnNwCJqg

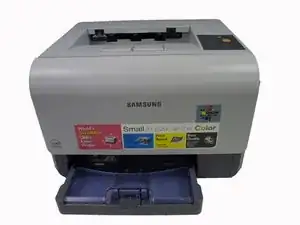

    • Use the provided green cap to close the waste container opening on the top back of the container.

    • Push new container firmly into place.

    • Firmly close front cover.

    • Turn printer on.

    • It may take up to 3 minutes for printer to resume function.

    • If you hear a crackling sound once the printer turns on the imaging unit is not installed correctly. Take out and reinsert the unit.

Conclusion

To reassemble your device, follow these instructions in reverse order.
