Samsung DVD-HD850 Player Disk Drive Motor Replacement

Written By: Carlos
  • Comments: 0
Samsung DVD-HD850 Player Disk Drive Motor Replacement

Difficulty

Moderate

Steps

9

Time Required

15 - 20 minutes

Introduction

This guide shall assist you in fixing a jammed disk tray if you followed thoroughly the troubleshooting steps with no positive results.

  1. d2dh2SytUYAIMxBa

    • *NOTE* remember to never connect to power when working on electrical components

    • Find and locate the disk tray it is located top right hand side of the component when the back of the device ( dvd player ) is facing you.

  2. GaouLYU5pN1Nah6l

    • Locate and gently remove the data strips on the tray. There are three in total, two on the left hand side and one on the right.

  3. s6KSOMHJHRwfLwAT
    s6KSOMHJHRwfLwAT
    OLuKsLfdnW6YPew5
    hKHW3moNRPf4G3jU

    • As noted by the red circles, locate and remove the screws one at a time

  4. 2TqBPIANPxrCmpE1

    • After removing the clips slowly incline the disk drive towards you and unclip it from the two (2) brackets located on the top

    • Be careful not to push too much pressure on the brackets since they tend to break easily

  5. B5gJVN4BcstcRL6c

    • Congrats! You have sucessfully have taken out the disk drive

  6. JvoVxKhCMhjLxvoa

    • *NOTE* remember to never connect to power when working on electrical components

    • Remove screws as noted by the picture

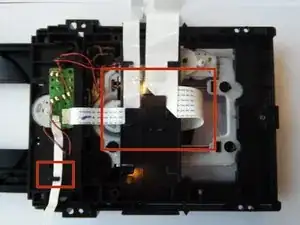

  7. oTdxVHiVUVZb2FrI

    • Slowly remove the circuit board/cables/strips from under the black bar. ( under and over)

    • Be careful not to pull it hard, due to these cable are fragile and can break easliy

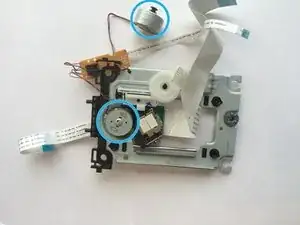

  8. VbqOWalsYMaAPyZV

    • Replace the motor in question ( usually both are needed to be replaced)

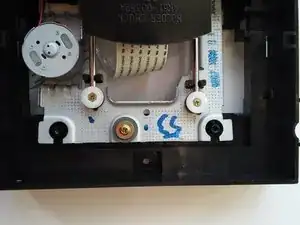

  9. 5ZBiQT3rTX1r5WUC

    • To reassembly do these steps in reverse order

Conclusion

To reassemble your device, follow these instructions in reverse order.
