Samsung Galaxy Gear Camera Replacement

Written By: Jenny Verheul
  • Comments: 1
Samsung Galaxy Gear Camera Replacement

Difficulty

Moderate

Steps

3

Time Required

10 minutes

Introduction

This guide is a continuation of the band replacement guide. It is for showing how to replace the camera.

  1. wftg2CeMMVdb4T46

    • Loosen the camera ribbon so it will easily pass through the watch body.

  2. SHfBsxjcIy2V2Vuq
    SHfBsxjcIy2V2Vuq
    TYR1jqAAkmDyLNfx

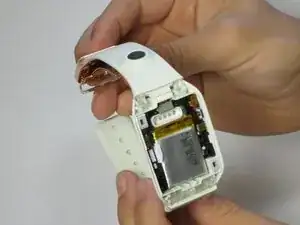

    • Grip the body of the watch and pull the band upward.

    • Do the same with the adjacent band, but there will be no camera ribbon to pass through the watch body.

    The adjacent band is not secured with screws. It is just friction fitted. I used a flat head screwdriver to loosen it and then had to use pliers to carefully lift it up out of the housing.

    Lewis Addison -

  3. kYfxqlfOV5PmXhrD
    kYfxqlfOV5PmXhrD
    yWAtXxrnTs4PpNGe

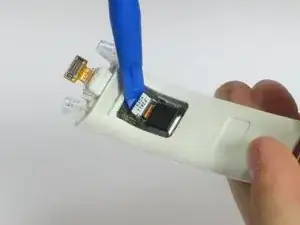

    • Use the plastic opening tool to pry the camera backdoor.

    • Use the plastic opening tool to pry the tab and pull the camera.

Conclusion

To reassemble your device, follow these instructions in reverse order.
