Introduction
This guide instructs on how to replace the back panel audio speaker.
-
-
Before starting, ensure device is completely turned off.
-
On the back of phone, locate the slot on the top left corner.
-
Insert plastic opening tool or fingernail and pull up on the back plate.
-
With the corner released, slide your finger around the device between the back plate and the phone to release connectors.
-
-
-
Remove the 6 3.45 mm Phillips #000 screws from the bottom of the assembly surrounding the speaker.
-

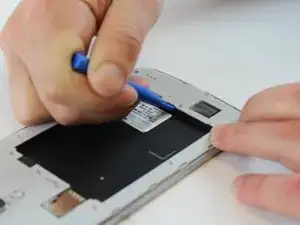

Gently insert plastic opening tool through the inside groove of the speaker assembly.
-

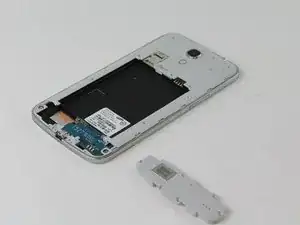

Once the top part of the speaker assembly pops free. Gently lift up with your fingers to remove speaker.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
