Samsung Galaxy Prevail 2 Vibrator Replacement

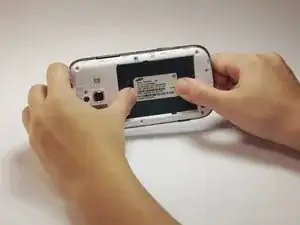

Using your finger nails or the spudger; pry the plastic casing open, and pull away from the body of the phone.

Gently pull the battery out of the phone.

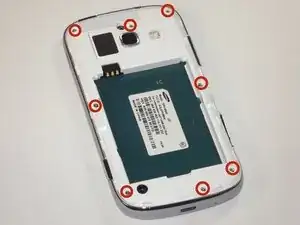

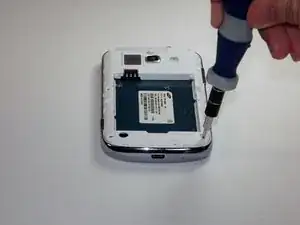

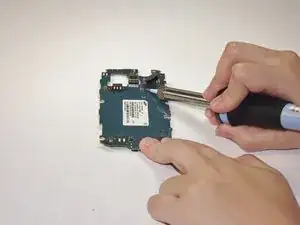

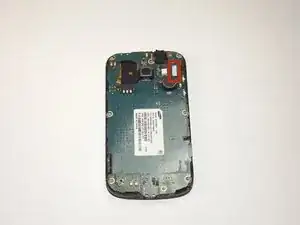

Unscrew all of the screws.

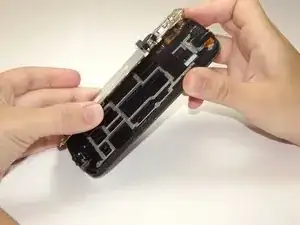

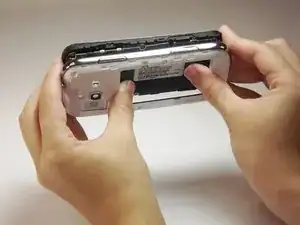

Insert the plastic prying tool between the silver frame and the white face of the phone. to pry off the front frame.

Use your thumbs to separate the motherboard from the back of the phone.

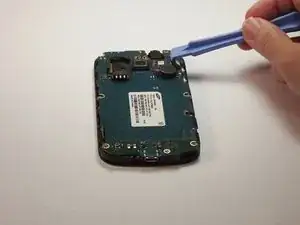

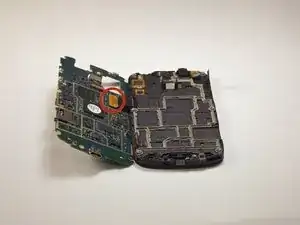

With the plastic prying tool, lift up the flap in order to fully open the motherboard.

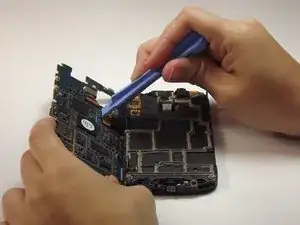

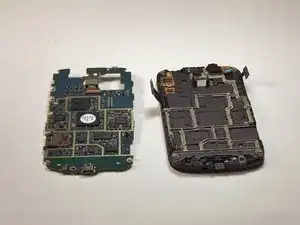

With plastic prying tool, lift the flap up to divide the motherboard.

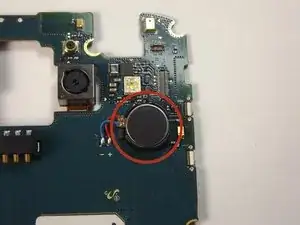

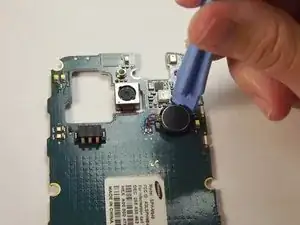

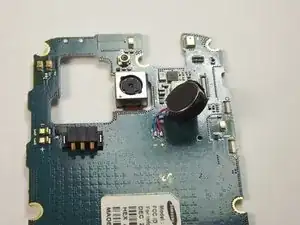

With plastic prying tool, lift up the vibration motor.

With the soldering iron remove the solder attaching the vibration motor to the motherboard.
