Introduction
This guide will demonstrate how to disassemble your Samsung Galaxy Tab 4 7.0 Sprint in preparation for replacing the front-facing camera, rear-facing camera, or the vibrating mechanism.
-
-

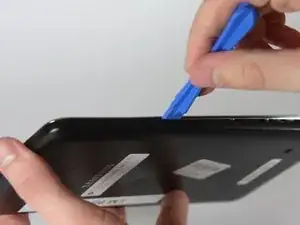

Insert the plastic opening tool into the gap between the device frame and the back panel on any side of the device.
-

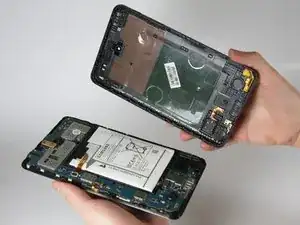

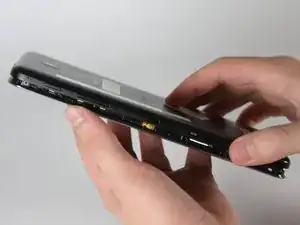

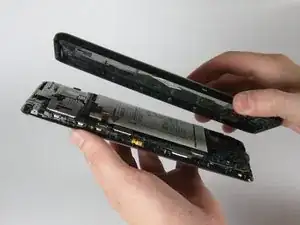

Slide the opening tool around the edges of the device to disconnect the back panel from the frame.
-
-
-

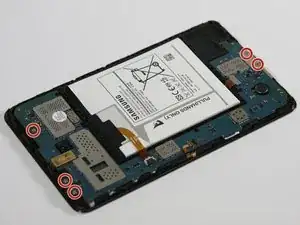

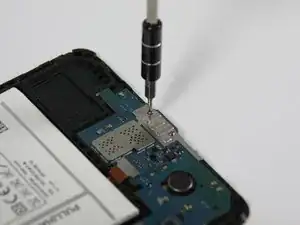

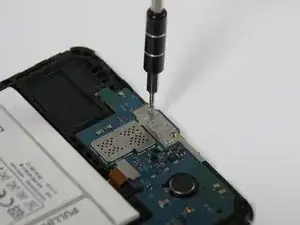

Using a Phillips #00 Screwdriver, remove the five 4 mm screws connecting the motherboard to the frame of the device.
-
-
-

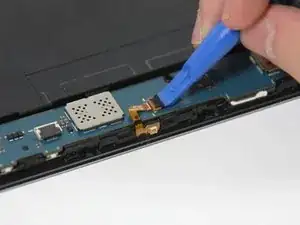

Use the plastic opening tool to unlock the wire on the narrow section of the motherboard by flipping-up the retaining flap.
-

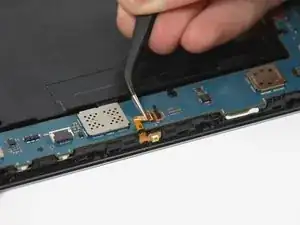

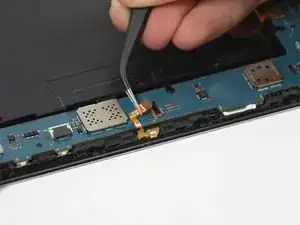

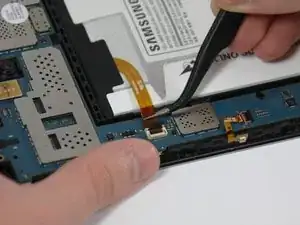

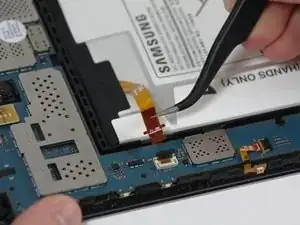

Use the tweezers to carefully remove the wire from the motherboard by sliding it away from the retaining flap.
-
-
-

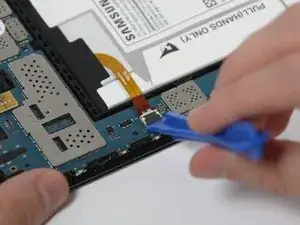

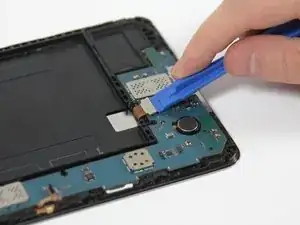

Disconnect the wire near the bottom of the motherboard by placing the plastic opening tool under the edge of the connector to flip it up.
-
-
-

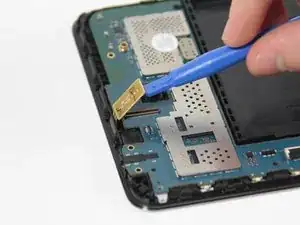

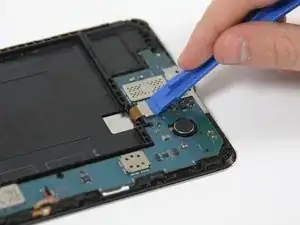

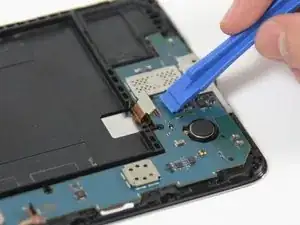

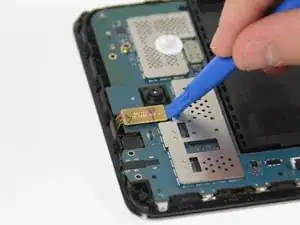

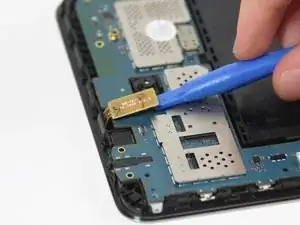

Disconnect the wire near the top of the motherboard by placing the plastic opening tool under the edge of the connector to flip it up.
-
-
-

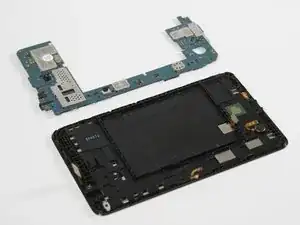

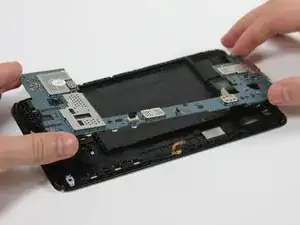

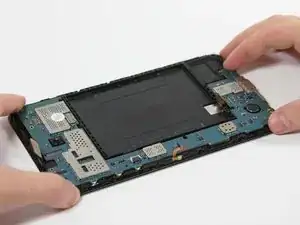

Gently remove the motherboard from the frame of the device by grabbing the top and bottom ends and pulling it toward you.
-
To reassemble your device, follow these instructions in reverse order.
