Introduction
The watch contains a small, 300mAh lithium-ion battery. Though these batteries will generally last for years, they do have a limit to the number of times they can be charged. As the battery grows older and is charged repeatedly, it may become less and less able to hold a charge. When this happens, replace the battery.
-
-
Press the watchband down against the work surface.
-
Press the tip of a flathead screwdriver against the edge of the spring-loaded holding pin.
-
-
-
With the spring-loaded pin pressed in, the watch band should release easily.
-
Gently pull the band away from the body of the watch.
-
Repeat steps 2 and 3 for the opposite side.
-
-
-
With the watch laying face-down, locate the four screws. They are located on the back of the watch, at the four corners.
-
-
-
With the watch’s back cover pried loose, gently lift it away from the front half of the watch.
-
-
-
Locate the battery on the back half of the disassembled watch body. It is rectangular in shape and located just above the window for the heart monitor.
-
-
-
Locate the battery’s electrical contacts. They are located next to the heart rate monitor. They roughly form a “+” shape.
-

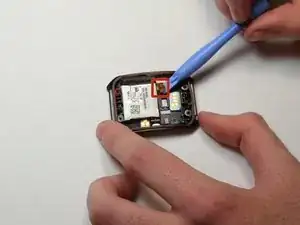

Using the plastic opening tool, gently pry the contacts away from the plastic channel in which they fit.
-
-
-

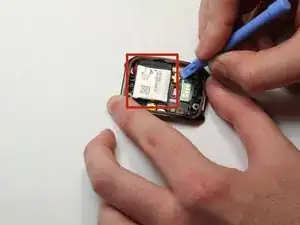

Gently work the plastic opening tool under the battery.
-

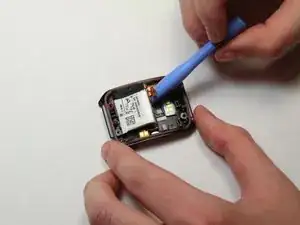

Using the plastic opening tool, gently pry the battery up.
-
To reassemble your device, follow these instructions in reverse order.
