Introduction
You will be required to disassemble much of the printer and its casing. You will need to refer to the Removing Samsung ML2510 Back Panel repair guide.
-
-

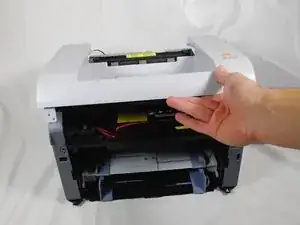

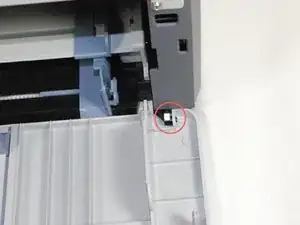

Remove the front panel by gently moving the holes on the panel, one at a time, from the pegs attached to the main body of the printer.
-
-
-

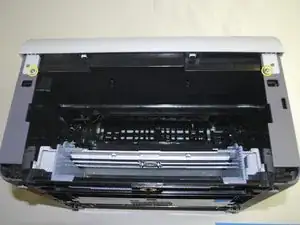

Use a Phillips #2 screwdriver to remove the two, 1", Phillips, PH#2 screws on the front face of the printer.
-
-
-

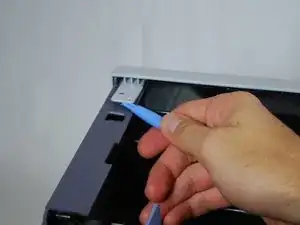

Use plastic opening tool to gently lift one side of the top panel from its peg.
-
Repeat the first process for the other side.
-
Lift the top panel from the front of the printer to remove it entirely.
-
-
-

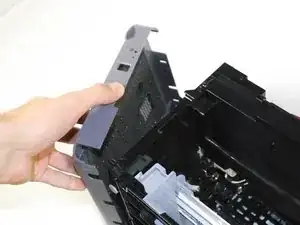

Lift the left side panel up from the raised stops.
-
Gently rotate the panel, as indicated in the picture, to remove the panel entirely.
-
-
-

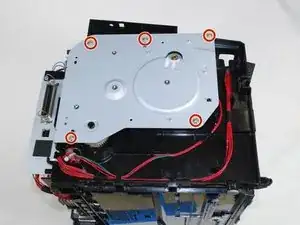

Use Phillips #2 screwdriver to remove the five, 1", Phillips, PH#2 screws on the side metal panel.
-
Remove the two, 1", Phillips, PH#2 screws on the back of the printer.
-

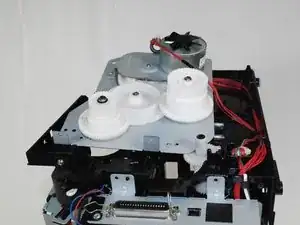

Flip over the metal panel to reveal the gear mechanism.
-
-
-
Remove the cable attached to the motor.
-
The entire panel can be removed from the rest of the printer.
-

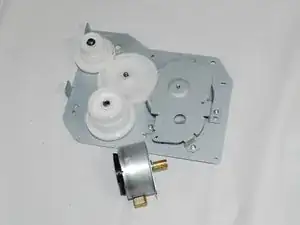

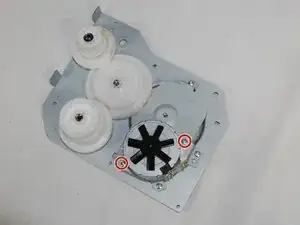

Use a Phillips #2 screwdriver to remove the motor from the panel by removing the two, 1", Phillips, PH#2 screws.
-
Replace the motor and reassemble the printer by following the instructions in reverse order.
-
