Samsung NP300E5C Optical Drive Replacement

Written By: aliahsan95
  • Comments: 1
Samsung NP300E5C Optical Drive Replacement

Difficulty

Easy

Steps

6

Time Required

2 - 5 minutes

Introduction

If your optical drive is failing to eject or read a CD, it may need to be replaced. This guide will coach you through the process of replacing your laptop's optical drive.

  1. fZGlQFHbDTiWLThX

    • Lay laptop down so that the bottom is facing the sky.

  2. A4LDSLjxWaIYgt3K
    A4LDSLjxWaIYgt3K
    iIlTMSXHpdTSRD1h
    fQt3Taf5HVFyTTHJ

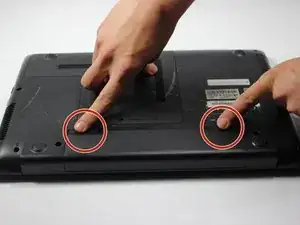

    • Push both tabs away from the center of the device.

    • While both are in the fully unlocked position, slide the battery out.

  3. L3hTuFdO12UAd6os

    • Remove this 4 mm Phillips #8 screw using a Phillips #00 screwdriver.

  4. vlZPZWWYQCPmwjqf
    vlZPZWWYQCPmwjqf
    cnWN1D1SAhNf6slu

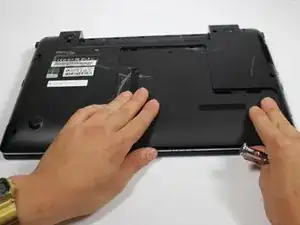

    • With the 4 mm Phillips #8 screw removed, firmly but gently pull the cover towards you.

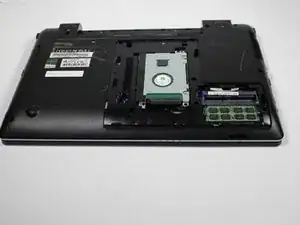

    • After moving the cover about 2 centimeters, you can lift and remove it.

  5. oRDcKR4RU2L5wg3I

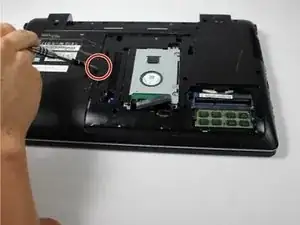

    • Remove the 4 mm Phillips #8 screw to the left of the hard drive using a Phillips #00 screwdriver.

  6. JQhXEMYhQq6AZIsQ
    JQhXEMYhQq6AZIsQ
    nCoYRITXHwywbjL4

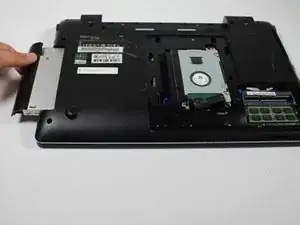

    • Using your fingernail or spudger to gently pull your optical drive out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
