Introduction
This guide shows how to remove and replace the fuse block or fuse board in your Samsung RF28R7201SG refrigerator.
The fuse block contains a number of fuses soldered on a circuit board and is made to be replaced as a whole unit. If your refrigerator doesn't power on at all, you may need to replace the fuse block.
Parts
-
-

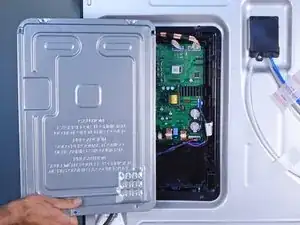

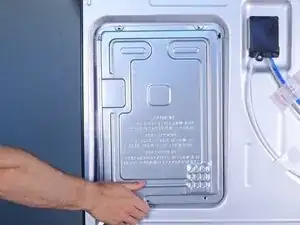

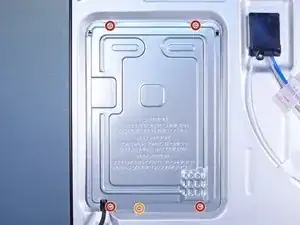

Use a Phillips screwdriver to remove the five screws securing the board access panel to the back of the refrigerator:
-
Four 14.8 mm-long screws
-
One 12.3 mm-long screw
-
-
-

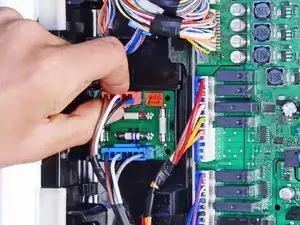

Squeeze the wide sides of the red connector to unlatch it from the fuse block.
-
Pull to disconnect the connector.
-
Repeat the procedure to disconnect the blue connector.
-
-
-

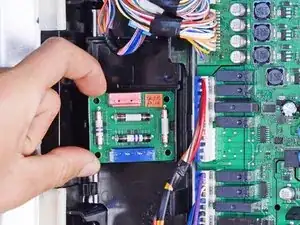

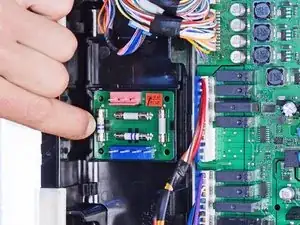

Use your fingers to pry and release the black plastic clip holding the left edge of the fuse block.
-

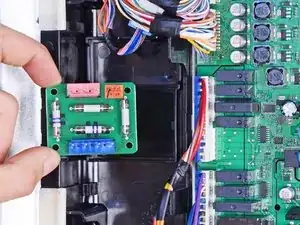

Lift out and remove the fuse block.
-
To reassemble your device, follow these instructions in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Ask our Answers community for help.
