Samsung Rogue Keyboard Replacement

Written By: Viktoria Mikoultchik
  • Comments: 0
Samsung Rogue Keyboard Replacement

Difficulty

Moderate

Steps

11

Time Required

15 minutes

Introduction

This guide will provide a step-by-step procedure for replacing the keyboard in your Samsung Rogue.

  1. kwfNALJHelngV52O
    kwfNALJHelngV52O
    EOU4I3IToTSgDEwc

    • Before disassembling your Samsung Rogue, make sure it is powered off.

    • With your thumbs, push down on the back cover of your phone and slide it away from the camera.

  2. JMswmFGHrjTicvVt
    JMswmFGHrjTicvVt
    SfZL51juyGQonjNO

    • You can now remove the battery by prying it up with your finger.

  3. kDOxOtee4YPjofVW

    • Use a plastic opening tool to carefully pry the back cover surrounding the camera up from the phone.

  4. mSaYe5AMA2OYv3Kb

    • Remove the five 3.4mm Philips screws securing the backing of the phone.

  5. 1ptIgT5Sefo46SEC
    1ptIgT5Sefo46SEC
    4EWaXZtW4RPa2ggC
    TZCTxDYLbsqcsecj

    • Use a plastic opening tool to carefully pry off the back cover.

    • Make sure you are prying along the edge and not between the two halves of the phone that slide away from each other.

    • Be careful to not drop the volume changing piece, for it can easily slip out.

  6. IFNUN5D5PmJdqOAX

    • Remove the two 3.45 mm Philips screws below the white sticker.

  7. ayZNQYiuuxEHEHXl
    ayZNQYiuuxEHEHXl
    QDldbHTLqKRLGkLc

    • Carefully lift the motherboard up from the bottom edge.

    • The film of wires is still attached to the motherboard, so do not completely remove the motherboard just yet or you may damage it.

  8. lYAU52j6iZWL2KeP
    lYAU52j6iZWL2KeP
    2TUXWQsZrlWOFULV

    • Use a plastic opening tool to disconnect the film from the motherboard.

  9. Utkb1XykKXgGNMRu

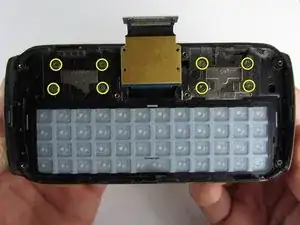

    • Remove the eight 1.7mm Philips screws above the keyboard.

  10. pKPXkVCs2hHBgxma

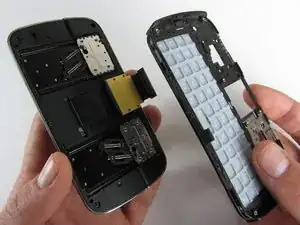

    • Carefully remove keyboard holder from the slider mechanisms underneath.

  11. cICmZtX3MpyhfRPr
    cICmZtX3MpyhfRPr
    vmJfT3uMcWOxDB1Y

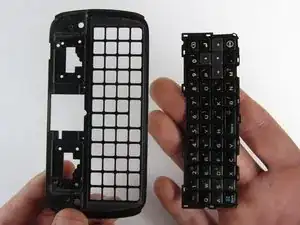

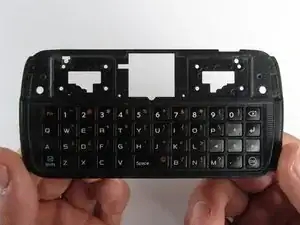

    • Turn keyboard holder over and allow the keyboard to simply fall out into your hand.

Conclusion

To reassemble your device, follow these instructions in reverse order.
